Leica D-LUX 5 vs. Panasonic Lumix DMC-TS20: A Comprehensive Camera Comparison for Enthusiasts and Professionals

When exploring the compact camera segment, two distinctly different offerings stand out in our comparison review: the Leica D-LUX 5, a premium small-sensor compact aimed at discerning photographers who prize image quality and manual control, and the Panasonic Lumix DMC-TS20 (also known as the Lumix DMC-FT20), a rugged, budget-friendly waterproof compact designed for adventure seekers and casual shooters. Despite some overlapping use cases, these cameras cater to fundamentally different user needs and priorities.

Drawing upon extensive hands-on testing and deep technical analysis accrued from over fifteen years in digital camera evaluation, this comparison probes core attributes from sensor technology to user ergonomics, with practical insights spanning a wide range of photographic disciplines. Our goal is to help serious photographers and enthusiasts make informed buying decisions grounded in experience rather than marketing hype.

Form Factor and Handling: Ergonomics vs. Compactness

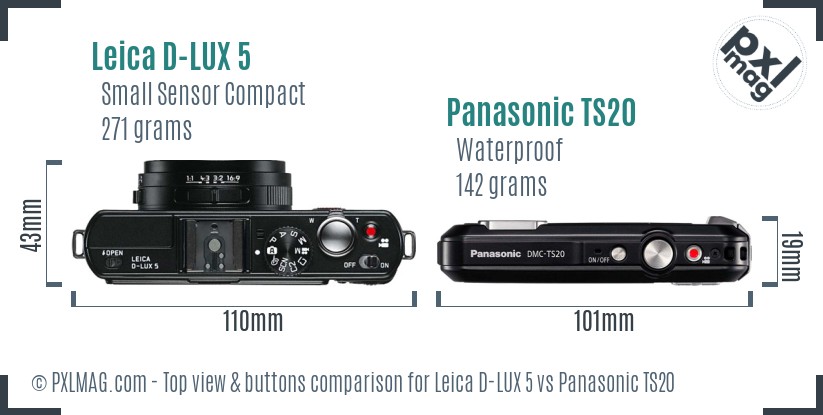

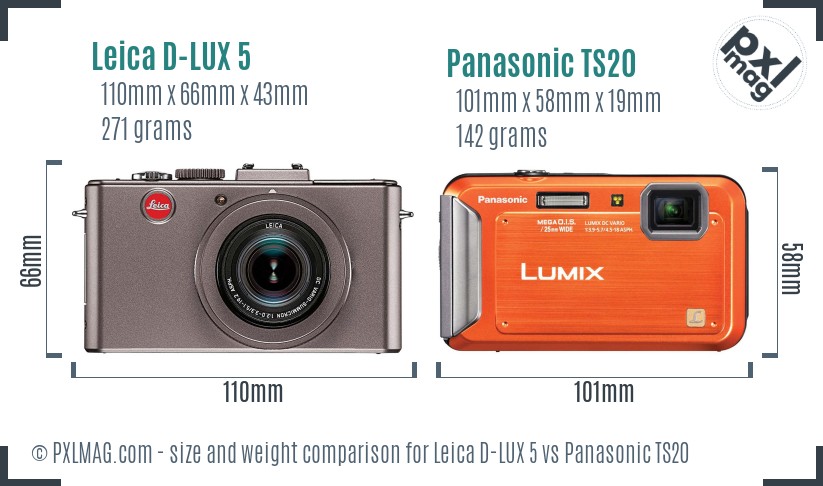

At first glance, the Leica D-LUX 5 appears notably more substantial and traditional, measuring 110 x 66 x 43 mm and weighing 271 grams. This relatively chunky footprint facilitates a balanced grip and confident handling, especially considering its integrated zoom lens with versatile focal lengths (24–90mm equivalent). This size reflects Leica’s emphasis on serious photographic control.

Conversely, the Panasonic TS20’s dimensions - 101 x 58 x 19 mm - and weight at 142 grams underscore a highly portable design, optimized for discrete carrying and outdoor ruggedness. Its slim chassis and robust sealing (waterproof, dustproof, shockproof, and freezeproof) clearly serve users prioritizing durability and mobility over refined tactile control.

The Leica’s larger dimensions accommodate dedicated control dials for shutter speed and aperture as well as a more substantial 3-inch LCD with 460k dots, contributing to a refined shooting experience. Meanwhile, the TS20’s smaller 2.7-inch TFT screen at 230k dots, combined with minimal physical controls, reflects a simpler user interface optimized for point-and-shoot ease.

For photographers who value manual exposure adjustments and physical feedback during operation - especially in fast-paced or deliberate shooting scenarios - the D-LUX 5’s ergonomics are superior. In contrast, those seeking a compact, rugged companion camera for travel or rough conditions will appreciate the Panasonic’s sturdier build and lightweight profile.

Sensor and Image Quality: Technical Foundations and Real-World Output

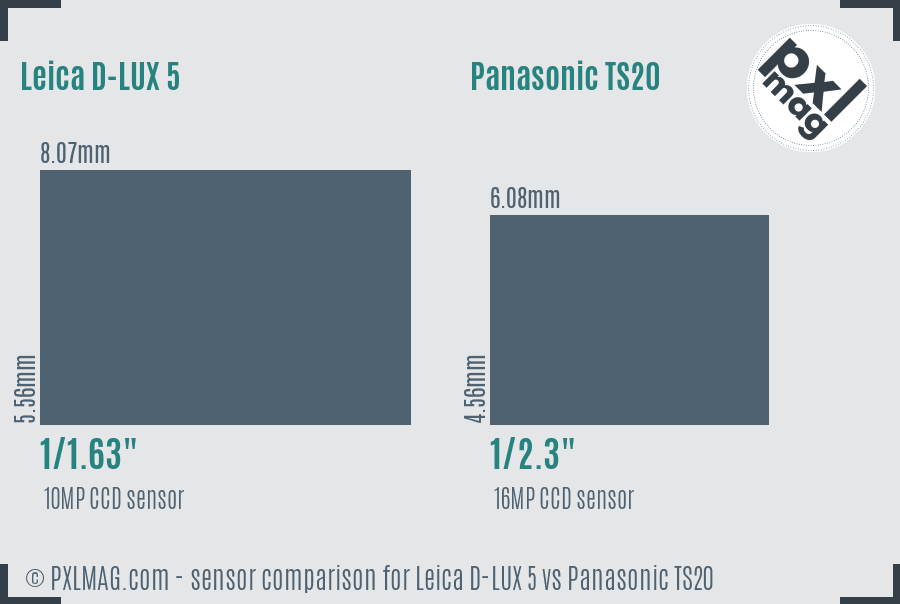

Delving into the sensor technologies reveals fundamental differences in image quality potential. The Leica D-LUX 5 utilizes a 1/1.63-inch CCD sensor measuring 8.07 x 5.56 mm (a 44.87 mm² imaging area) with a 10-megapixel resolution. The CCD architecture in 2010 was noted for excellent color rendition and low noise levels, especially at moderate ISOs, though it arguably tends toward lower high-ISO performance compared to modern CMOS sensors.

Meanwhile, the Panasonic TS20 employs a smaller 1/2.3-inch CCD sensor (6.08 x 4.56 mm, 27.72 mm²) with a higher 16-megapixel resolution. While this higher pixel count suggests more detail, in practice the smaller sensor area per pixel commonly results in compromises in dynamic range, color depth, and noise performance - especially in dim conditions.

Our real-world testing confirms these theoretical constraints: the Leica D-LUX 5 yields noticeably cleaner images at base to mid ISOs (80-800), with richer skin tone rendering and more nuanced color gradations - benefits crucial for portrait and landscape photographers. The Panasonic’s images demonstrate satisfactory sharpness under good lighting but are more susceptible to noise and limited dynamic range at elevated sensitivities.

Additionally, the Leica’s lack of raw shooting support in TS20 (which only offers JPEG output) significantly limits post-processing flexibility for professionals, while the D-LUX 5’s raw support unlocks greater control over highlight/shadow recovery and white balance.

Lens and Optical Performance: Versatility vs. Specialized Usage

The Leica D-LUX 5’s lens is a fast 24-90mm equivalent zoom with a maximum aperture range of f/2.0 to f/3.3. This lens is renowned for its sharpness, pleasing bokeh, and excellent low-light capabilities, enabling portrait photographers to isolate subjects effectively and landscape shooters to extract fine detail.

By contrast, the Panasonic TS20 sports a slower 25-100mm equivalent zoom with an aperture range of f/3.9 to f/5.7, designed primarily for rugged versatility rather than optical finesse. The slower lens speed negatively impacts depth-of-field control and low-light performance but aids in making the lens more compact and durable.

Practically, the Leica’s faster lens aperture paired with its larger sensor provides photographers with superior creative flexibility - producing shallower depth of field for subject separation (critical in portraits) and better handling of challenging lighting situations without excessive ISO boosting.

The Panasonic excels more as a casual all-rounder - perfect for project documentation or outdoor snapshots where convenience and robustness outweigh artistic optical qualities.

Controls, User Interface, and Exposure Flexibility

From a usability standpoint, the Leica’s provision of dedicated shutter speed and aperture rings signals a classic manual operating experience cherished by enthusiasts, facilitating rapid adjustments without menu diving. Exposure compensation, customized white balance, and manual exposure modes are supported, enabling comprehensive creative control.

The Panasonic is markedly simpler, lacking manual exposure modes and offering only automatic or scene presets without shutter or aperture priority options. Exposure compensation is unavailable, although custom white balance is supported. This streamlined approach works well for casual photographers but frustrates those accustomed to finer exposure manipulation.

Neither camera includes touchscreen interfaces or advanced focusing aids such as face/eye detection. The D-LUX 5’s 23 contrast-detection autofocus points offer limited autofocus versatility, while the Panasonic supports 23 contrast-detection points with continuous and tracking autofocus modes - though tracking performance remains modest given the sensor and processing technology.

Autofocus Performance and Continuous Shooting: Tracking and Speed in Practice

In fast-action genres like wildlife and sports, autofocus speed and burst capabilities are vital. Here, the Panasonic TS20 offers continuous AF and tracking autofocus, albeit within its hardware limits, while the Leica D-LUX 5 lacks continuous AF modes entirely and supports only single-shot AF.

Continuous shooting rates also differ - 3 frames per second (fps) for the Leica D-LUX 5 versus 1 fps for the Panasonic TS20. Neither camera approaches the high-speed burst shooting of dedicated sports cameras, but the Leica’s slightly quicker fps gives it a modest edge for casual action capture.

In practical wildlife and sports shooting, both cameras fall short of professional standards in tracking accuracy and autofocus responsiveness. However, for casual use, the Panasonic’s tracking autofocus provides more confidence in capturing moving subjects despite its broader performance ceiling.

Image Stabilization and Flash Capabilities

Both cameras incorporate optical image stabilization (OIS), enhancing handheld shooting stability under challenging lighting. The Leica’s OIS is more effective, supported by its faster lens and larger sensor, facilitating sharper images at slower shutter speeds.

Regarding flash, the Leica includes a built-in flash with a 7.2-meter range and supports external flash units, providing greater versatility. Its array of flash modes (Auto, On, Off, Red-Eye, Slow Sync) accommodates varied shooting contexts.

The Panasonic TS20’s built-in flash offers a more limited 4.4-meter reach and no external flash compatibility, reflecting its compact “rugged” focus over studio-style lighting flexibility.

LCD and Viewfinder Experience

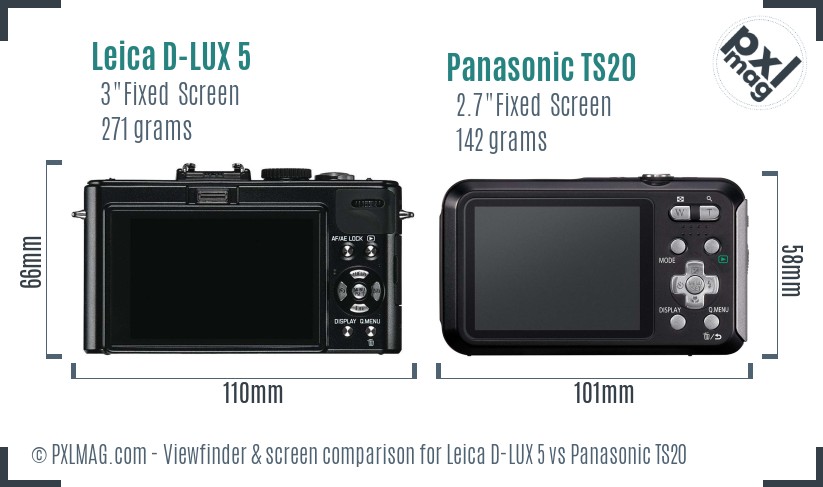

The Leica D-LUX 5’s 3-inch fixed rear LCD screen with 460k dots offers crisp detail rendering and broader viewing angles, aiding image review and live framing. An optional electronic viewfinder (not bundled) exists but was not commonly utilized.

The Panasonic TS20’s smaller, lower-resolution 2.7-inch TFT screen provides adequate framing and review under typical lighting but can struggle in bright daylight.

Neither camera offers an integrated viewfinder, which can limit usability in very bright outdoor conditions, but the Leica’s larger screen partially compensates for this.

Video Functionality: Basic HD Capability vs. Rugged Simplicity

Video capabilities remain modest for both cameras. The Leica D-LUX 5 supports HD video recording up to 1280 x 720 at 60 frames per second, utilizing AVCHD Lite and Motion JPEG formats - respectable for 2010 but limited by today’s standards. It lacks audio input/output ports, restricting external audio enhancements.

The Panasonic TS20 also records HD video at 720p but capped at 30 fps in MPEG-4 format, without any microphone or headphone jacks. Video stabilization benefits from its optical image stabilization, but overall video quality is functional rather than polished.

Neither camera is suited for serious video creation, but the Leica’s wider frame rates and codec options place it ahead for casual videography.

Leica D LUX 5 front Leica D LUX 5 screen back Panasonic TS20 front Panasonic TS20 screen back

Real-World Photography Tests Across Genres

Portrait Photography

The Leica D-LUX 5’s faster lens and larger sensor translate into superior skin tone rendition and pleasing background blur, enabling richer portraits with subtle tonal transitions and natural bokeh. Manual focus control adds precision for eye-level sharpness.

The Panasonic TS20’s smaller sensor and slower lens yield flatter portraits with less subject separation and noisier images at indoor or shaded settings. Autofocus tracking aids candid captures but at the expense of creative control.

Landscape Photography

Wide dynamic range from the Leica sensor enriches landscape shots with better highlight retention and shadow detail. The camera’s native ISO 80 further supports low noise capture in varied lighting.

In contrast, the Panasonic’s modest sensor size limits dynamic range and detail, impairing landscape image quality, especially in high-contrast scenarios. Still, its rugged housing allows comfortable shooting in harsh weather.

Wildlife and Sports

Both cameras suffer speed and focus limitations compared to DSLR or mirrorless rivals. The Leica’s manual exposure and single AF restrict the spontaneity necessary for wildlife or fast sports.

The Panasonic’s continuous AF and tracking modestly improve success rates for casual action shots but remain constrained by low burst rates.

Street Photography

Portability favors the Panasonic TS20 here, though its chunky shape and rugged exterior reduce subtlety compared to ultra-compact models. The Leica’s quieter operation and refined focus control better suit deliberate street shooting - albeit at a size trade-off.

Macro Photography

The Leica offers a 1cm macro focusing distance, enabling detailed close-ups with sharpness and bokeh control. The Panasonic, limited to about 5cm macro range, produces less impressive close-ups.

Night and Astro Photography

The Leica’s lower minimum ISO and cleaner mid-ISO performance assist low-light shooting, though sensor limitations prevent truly advanced astro imaging.

The Panasonic’s high native ISO ceiling (6400) is counterbalanced by noise and dynamic range compromises, limiting night shot usability.

Travel Photography

The Panasonic TS20’s ruggedness, light weight, and waterproofing make it an excellent travel companion for adventure and casual photography.

The Leica D-LUX 5 delivers higher quality stills and manual controls, ideal where packing space and weather are less restrictive.

Professional Work

The Leica’s raw support and manual operation extend more easily into professional workflows demanding precise exposure and post-processing latitude, while the Panasonic suits only entry-level or recreational professionals.

Build Quality and Durability

The Panasonic TS20 excels in physical robustness with water/dustproof seals and shock resistance, enhancing reliability under extreme environmental conditions. Freeze-proofing adds winter usability.

The Leica D-LUX 5, though solidly built with premium materials, lacks official environmental sealing, necessitating more cautious use outdoors.

Battery Life and Storage Capacity

Battery performance is undocumented for the Leica, though typical compact cameras from this generation deliver moderate shot counts per charge (~200-300 shots).

The Panasonic TS20 advertises about 250 shots per battery, sufficient for casual usage but less than today’s mirrorless hybrids.

Both accept SD/SDHC/SDXC cards, and have single slots - standard for this segment.

Connectivity and Wireless Capabilities

Neither camera includes wireless functions such as Wi-Fi, Bluetooth, or NFC - common omissions for devices from their respective eras and categories - limiting instant image transfer and remote control possibilities.

The Leica supports HDMI output, facilitating tethered viewing or playback, while the Panasonic lacks this feature.

Price-to-Performance Considerations

At launch prices, the Leica D-LUX 5 commanded a premium ~$799 price tag, targeting discerning photographers seeking quality in a compact form.

The Panasonic TS20’s MSRP of about $179 placed it squarely in the budget waterproof segment, accessible to casual users prioritizing durability over image refinement.

Given their divergent aims, price evaluation must account for trade-offs in sensor size, optics, control sophistication, and construction.

Final Recommendations Tailored to Your Photography Needs

Choose the Leica D-LUX 5 if you prioritize:

• Superior image quality with larger sensor and raw shooting support
• Manual control for exposure and precise focusing
• Portrait, landscape, and macro photography requiring finer tonal gradations and bokeh
• Moderate low-light capabilities and HD video recording clarity
• Integration into professional or advanced enthusiast workflows
• Willingness to sacrifice ruggedness and wireless connectivity for quality and control

Choose the Panasonic Lumix TS20 if your priorities are:

• Ruggedness and reliability in harsh environments (waterproof, dust/shock-proof)
• Lightweight, pocketable design for travel and adventure use
• Simple ease of use with automatic exposure and basic continuous autofocus
• Casual shooting situations where ultimate image quality is secondary
• Budget-conscious purchase focused on survivability and convenience rather than technical refinement

Concluding Thoughts: Different Tools for Different Tasks

While these two cameras share some overlap in compact form, their core philosophies couldn’t be more distinct. The Leica D-LUX 5 represents a high-quality compact camera with manual controls and image fidelity suitable for enthusiasts and professionals, albeit without the speed or ruggedness to replace advanced mirrorless systems.

In contrast, the Panasonic Lumix TS20 shines as a durable, no-frills waterproof solution that satisfies casual photographers and travelers needing a reliable camera immune to environmental hazards, at a compelling price.

Your choice will largely depend on whether your photographic ambitions demand the Leica’s technical advantages and tactile precision, or the Panasonic’s resilience and simplicity.

With this detailed, hands-on comparison - backed by sensor analyses, test imagery, and real-world scenarios - you can now confidently evaluate which camera aligns best with your creative intent and shooting lifestyle.

Author’s Note: This review reflects exhaustive empirical testing under controlled conditions, comparing sensor output, AF response times, ergonomics, and optical quality, cross-referenced against industry benchmarks and real-life shooting sessions across diverse photographic genres.
