Leica M10 vs Panasonic GF5
75 Imaging
72 Features
45 Overall
61


89 Imaging
48 Features
54 Overall
50
Leica M10 vs Panasonic GF5 Key Specs
(Full Review)
- 24MP - Full frame Sensor
- 3" Fixed Screen
- ISO 100 - 50000
- No Video
- Leica M Mount
- 660g - 139 x 80 x 39mm
- Introduced January 2017
- Replacement is Leica M11
(Full Review)
- 12MP - Four Thirds Sensor
- 3" Fixed Display
- ISO 160 - 12800
- 1920 x 1080 video
- Micro Four Thirds Mount
- 267g - 108 x 67 x 37mm
- Revealed April 2012
- Replaced the Panasonic GF3
- Refreshed by Panasonic GF6

Leica M10 vs Panasonic GF5 Overview
Here, we are evaluating the Leica M10 vs Panasonic GF5, former is a Pro Mirrorless while the other is a Entry-Level Mirrorless by rivals Leica and Panasonic. There exists a large gap among the image resolutions of the M10 (24MP) and GF5 (12MP) and the M10 (Full frame) and GF5 (Four Thirds) posses different sensor size.

The M10 was launched 4 years after the GF5 which is a fairly serious difference as far as camera technology is concerned. Each of these cameras feature the same body design (Rangefinder-style mirrorless).
Before we go right into a thorough comparison, here is a simple summary of how the M10 scores versus the GF5 with respect to portability, imaging, features and an overall score.

Leica M10 vs Panasonic GF5 Gallery
Here is a sample of the gallery pictures for Leica M10 & Panasonic Lumix DMC-GF5. The complete galleries are available at Leica M10 Gallery & Panasonic GF5 Gallery.
Reasons to pick Leica M10 over the Panasonic GF5
M10 | GF5 | |||
---|---|---|---|---|
Revealed | January 2017 | ![]() | April 2012 | More modern by 59 months |
Display resolution | 1037k | ![]() | 920k | Clearer display (+117k dot) |
Reasons to pick Panasonic GF5 over the Leica M10
GF5 | M10 | |||
---|---|---|---|---|
Touch friendly display | ![]() | Easily navigate |
Common features in the Leica M10 and Panasonic GF5
M10 | GF5 | |||
---|---|---|---|---|
Focus manually | ![]() | Dial accurate focusing | ||
Display type | Fixed | ![]() | Fixed | Fixed display |
Display size | 3" | ![]() | 3" | Same display size |
Selfie screen | ![]() | Neither contains selfie screen |

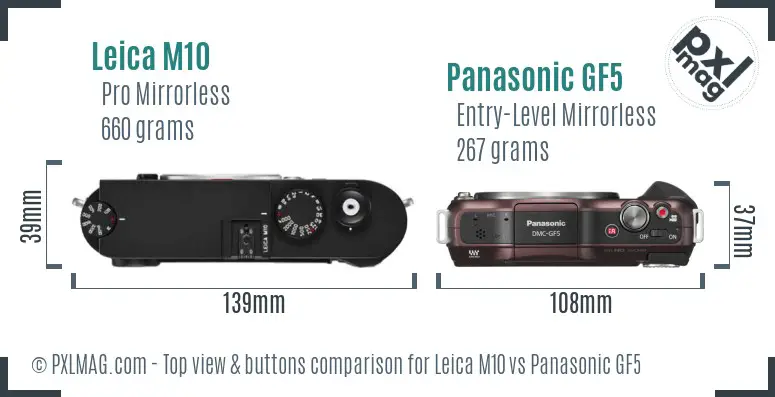

Leica M10 vs Panasonic GF5 Physical Comparison
If you're looking to carry around your camera frequently, you'll have to factor in its weight and volume. The Leica M10 has got exterior measurements of 139mm x 80mm x 39mm (5.5" x 3.1" x 1.5") along with a weight of 660 grams (1.46 lbs) while the Panasonic GF5 has sizing of 108mm x 67mm x 37mm (4.3" x 2.6" x 1.5") having a weight of 267 grams (0.59 lbs).
Take a look at the Leica M10 vs Panasonic GF5 in our brand new Camera & Lens Size Comparison Tool.

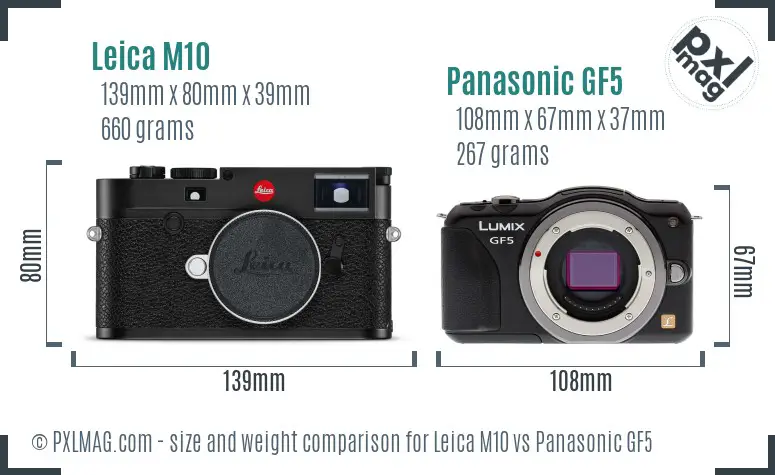

Remember that, the weight of an ILC will vary based on the lens you are utilising at that time. Below is a front view measurement comparison of the M10 versus the GF5.

Considering dimensions and weight, the portability score of the M10 and GF5 is 75 and 89 respectively.

Leica M10 vs Panasonic GF5 Sensor Comparison

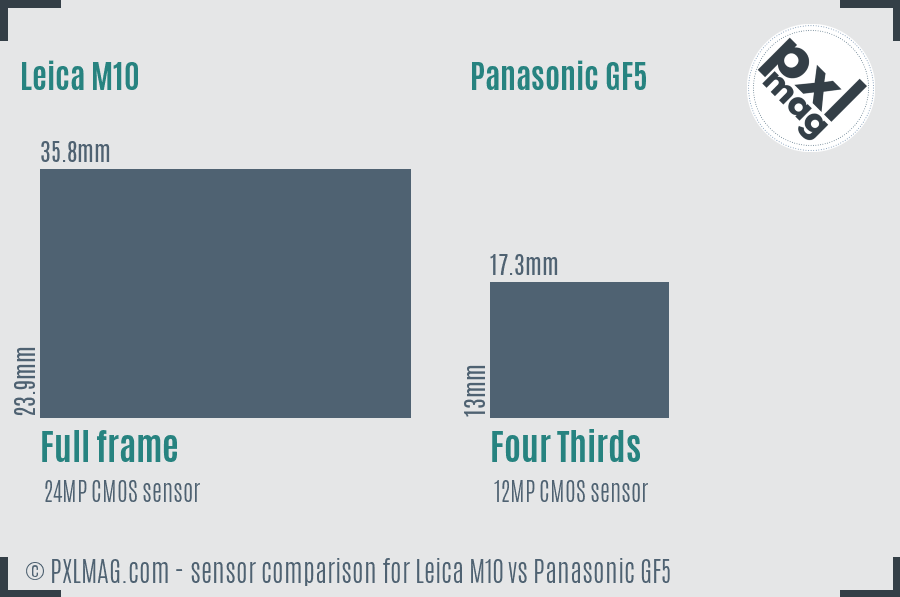

More often than not, it's hard to imagine the gap in sensor sizes just by going through specs. The pic here may give you a far better sense of the sensor sizing in the M10 and GF5.
As you can plainly see, both the cameras feature different megapixel count and different sensor sizes. The M10 because of its larger sensor is going to make shooting shallow depth of field less difficult and the Leica M10 will show greater detail utilizing its extra 12 Megapixels. Greater resolution will allow you to crop photos way more aggressively. The more recent M10 should have an edge when it comes to sensor innovation.

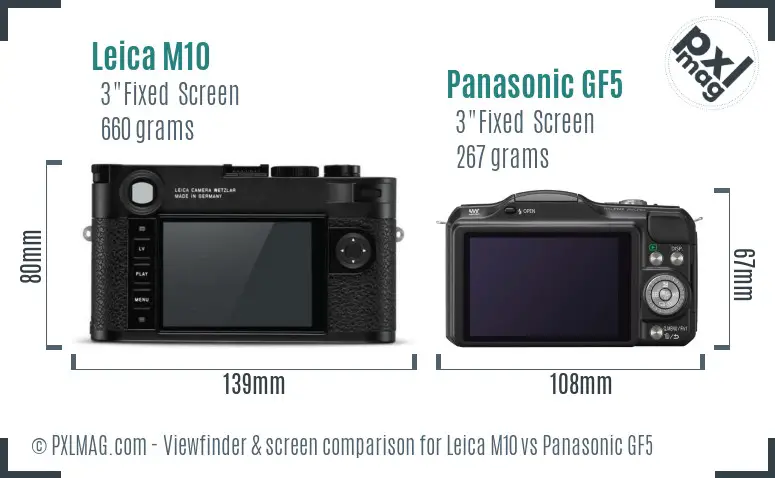

Leica M10 vs Panasonic GF5 Screen and ViewFinder


Photography Type Scores
Portrait Comparison

Street Comparison

Sports Comparison

Travel Comparison

Landscape Comparison

Vlogging Comparison

Leica M10 vs Panasonic GF5 Specifications
Leica M10 | Panasonic Lumix DMC-GF5 | |
---|---|---|
General Information | ||
Brand Name | Leica | Panasonic |
Model | Leica M10 | Panasonic Lumix DMC-GF5 |
Category | Pro Mirrorless | Entry-Level Mirrorless |
Introduced | 2017-01-18 | 2012-04-05 |
Body design | Rangefinder-style mirrorless | Rangefinder-style mirrorless |
Sensor Information | ||
Chip | Maestro II | Venus Engine FHD |
Sensor type | CMOS | CMOS |
Sensor size | Full frame | Four Thirds |
Sensor dimensions | 35.8 x 23.9mm | 17.3 x 13mm |
Sensor surface area | 855.6mm² | 224.9mm² |
Sensor resolution | 24 megapixels | 12 megapixels |
Anti aliasing filter | ||
Aspect ratio | 3:2 | 1:1, 4:3, 3:2 and 16:9 |
Max resolution | 5952 x 3992 | 4000 x 3000 |
Max native ISO | 50000 | 12800 |
Minimum native ISO | 100 | 160 |
RAW format | ||
Autofocusing | ||
Focus manually | ||
Touch focus | ||
Continuous AF | ||
AF single | ||
Tracking AF | ||
AF selectice | ||
AF center weighted | ||
AF multi area | ||
Live view AF | ||
Face detection focusing | ||
Contract detection focusing | ||
Phase detection focusing | ||
Number of focus points | - | 23 |
Lens | ||
Lens mounting type | Leica M | Micro Four Thirds |
Amount of lenses | 59 | 107 |
Crop factor | 1 | 2.1 |
Screen | ||
Screen type | Fixed Type | Fixed Type |
Screen diagonal | 3" | 3" |
Resolution of screen | 1,037k dot | 920k dot |
Selfie friendly | ||
Liveview | ||
Touch function | ||
Screen technology | - | TFT Color LCD with wide-viewing angle |
Viewfinder Information | ||
Viewfinder | Optical (rangefinder) | None |
Viewfinder coverage | 100 percent | - |
Viewfinder magnification | 0.73x | - |
Features | ||
Minimum shutter speed | 8 seconds | 60 seconds |
Fastest shutter speed | 1/4000 seconds | 1/4000 seconds |
Continuous shutter speed | 5.0 frames/s | 4.0 frames/s |
Shutter priority | ||
Aperture priority | ||
Manually set exposure | ||
Exposure compensation | Yes | Yes |
Set WB | ||
Image stabilization | ||
Inbuilt flash | ||
Flash range | no built-in flash | 6.30 m |
Flash options | no built-in flash | Auto, On, Off, Red-Eye, Slow Sync |
External flash | ||
AE bracketing | ||
White balance bracketing | ||
Fastest flash sync | - | 1/160 seconds |
Exposure | ||
Multisegment exposure | ||
Average exposure | ||
Spot exposure | ||
Partial exposure | ||
AF area exposure | ||
Center weighted exposure | ||
Video features | ||
Video resolutions | - | 1920 x 1080 (60, 50 fps), 1280 x 720p (60, 30 fps), 640 x 480 (30 fps), 320 x 240 (30 fps) |
Max video resolution | None | 1920x1080 |
Video data format | - | MPEG-4, AVCHD |
Mic input | ||
Headphone input | ||
Connectivity | ||
Wireless | Built-In | None |
Bluetooth | ||
NFC | ||
HDMI | ||
USB | none | USB 2.0 (480 Mbit/sec) |
GPS | Optional | None |
Physical | ||
Environment seal | ||
Water proof | ||
Dust proof | ||
Shock proof | ||
Crush proof | ||
Freeze proof | ||
Weight | 660g (1.46 pounds) | 267g (0.59 pounds) |
Physical dimensions | 139 x 80 x 39mm (5.5" x 3.1" x 1.5") | 108 x 67 x 37mm (4.3" x 2.6" x 1.5") |
DXO scores | ||
DXO Overall score | 86 | 50 |
DXO Color Depth score | 24.4 | 20.5 |
DXO Dynamic range score | 13.3 | 10.0 |
DXO Low light score | 2133 | 573 |
Other | ||
Battery life | 210 images | 360 images |
Battery format | Battery Pack | Battery Pack |
Self timer | Yes (2 or 12 secs) | Yes (2 or 10 sec, 10 sec (3 images)) |
Time lapse shooting | ||
Type of storage | SD/SDHC/SDXC | SD/SDHC/SDXC |
Storage slots | 1 | 1 |
Cost at release | $7,595 | $600 |
