Nikon S5100 vs Olympus TG-820 iHS
95 Imaging
35 Features
21 Overall
29


92 Imaging
35 Features
37 Overall
35
Nikon S5100 vs Olympus TG-820 iHS Key Specs
(Full Review)
- 12MP - 1/2.3" Sensor
- 2.7" Fixed Screen
- ISO 100 - 1600
- Optical Image Stabilization
- 1280 x 720 video
- 28-140mm (F2.7-6.6) lens
- 132g - 97 x 57 x 22mm
- Released August 2010
(Full Review)
- 12MP - 1/2.3" Sensor
- 3" Fixed Screen
- ISO 100 - 6400
- Sensor-shift Image Stabilization
- 1920 x 1080 video
- 28-140mm (F3.9-5.9) lens
- 206g - 101 x 65 x 26mm
- Revealed February 2012

Nikon S5100 vs Olympus TG-820 iHS Overview
Below, we will be evaluating the Nikon S5100 versus Olympus TG-820 iHS, former being a Small Sensor Compact while the latter is a Waterproof by rivals Nikon and Olympus. The resolution of the S5100 (12MP) and the TG-820 iHS (12MP) is relatively close and they use the exact same sensor measurements (1/2.3").

The S5100 was released 18 months prior to the TG-820 iHS which makes the cameras a generation apart from each other. Both of the cameras come with the identical body type (Compact).
Before diving through a in-depth comparison, below is a quick highlight of how the S5100 grades vs the TG-820 iHS in regards to portability, imaging, features and an overall rating.

Nikon S5100 vs Olympus TG-820 iHS Gallery
The following is a preview of the gallery photos for Nikon Coolpix S5100 & Olympus TG-820 iHS. The complete galleries are available at Nikon S5100 Gallery & Olympus TG-820 iHS Gallery.
Reasons to pick Nikon S5100 over the Olympus TG-820 iHS
S5100 | TG-820 iHS |
---|
Reasons to pick Olympus TG-820 iHS over the Nikon S5100
TG-820 iHS | S5100 | |||
---|---|---|---|---|
Revealed | February 2012 | ![]() | August 2010 | Fresher by 18 months |
Screen dimension | 3" | ![]() | 2.7" | Bigger screen (+0.3") |
Screen resolution | 1030k | ![]() | 230k | Clearer screen (+800k dot) |
Common features in the Nikon S5100 and Olympus TG-820 iHS
S5100 | TG-820 iHS | |||
---|---|---|---|---|
Focus manually | ![]() | Lack of manual focusing | ||
Screen type | Fixed | ![]() | Fixed | Fixed screen |
Selfie screen | ![]() | Neither offers selfie screen | ||
Touch screen | ![]() | Missing Touch screen |
Nikon S5100 vs Olympus TG-820 iHS Physical Comparison

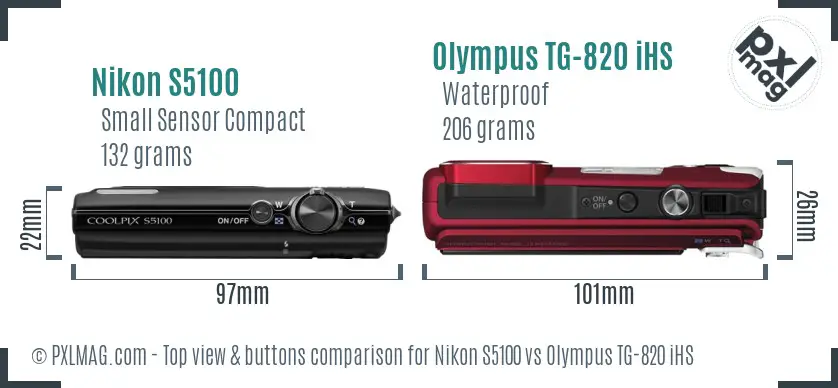

For anybody who is looking to carry your camera often, you need to think about its weight and size. The Nikon S5100 offers exterior measurements of 97mm x 57mm x 22mm (3.8" x 2.2" x 0.9") having a weight of 132 grams (0.29 lbs) and the Olympus TG-820 iHS has specifications of 101mm x 65mm x 26mm (4.0" x 2.6" x 1.0") with a weight of 206 grams (0.45 lbs).
Check the Nikon S5100 versus Olympus TG-820 iHS in our brand new Camera plus Lens Size Comparison Tool.

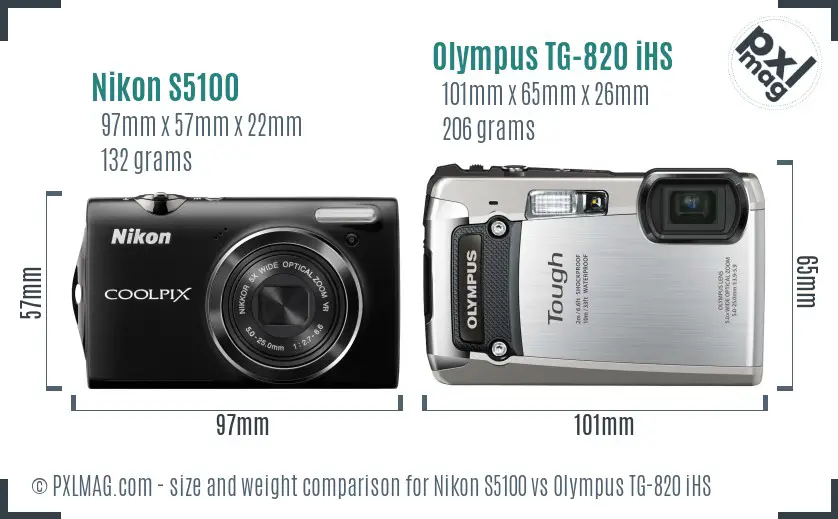

Remember that, the weight of an ILC will differ based on the lens you have attached at that time. Following is the front view size comparison of the S5100 versus the TG-820 iHS.

Factoring in size and weight, the portability grade of the S5100 and TG-820 iHS is 95 and 92 respectively.

Nikon S5100 vs Olympus TG-820 iHS Sensor Comparison

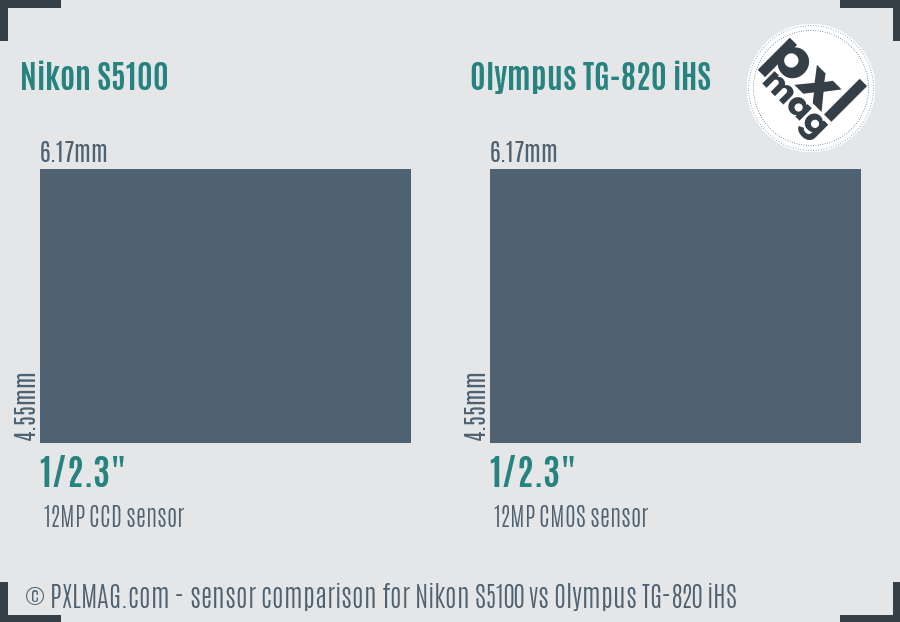

Oftentimes, it is very difficult to picture the difference in sensor sizing purely by researching specifications. The graphic below may offer you a much better sense of the sensor sizing in the S5100 and TG-820 iHS.
To sum up, the two cameras have got the exact same sensor measurements and the same exact megapixels therefore you can expect comparable quality of pictures though you will want to factor the age of the cameras into account. The older S5100 will be behind with regard to sensor technology.

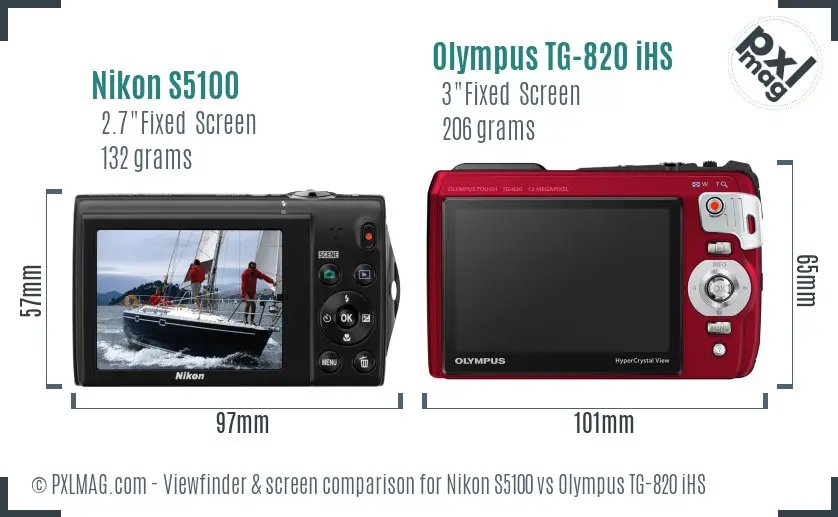

Nikon S5100 vs Olympus TG-820 iHS Screen and ViewFinder


Photography Type Scores
Portrait Comparison

Street Comparison

Sports Comparison

Travel Comparison

Landscape Comparison

Vlogging Comparison

Nikon S5100 vs Olympus TG-820 iHS Specifications
Nikon Coolpix S5100 | Olympus TG-820 iHS | |
---|---|---|
General Information | ||
Brand | Nikon | Olympus |
Model type | Nikon Coolpix S5100 | Olympus TG-820 iHS |
Class | Small Sensor Compact | Waterproof |
Released | 2010-08-17 | 2012-02-08 |
Body design | Compact | Compact |
Sensor Information | ||
Processor | Expeed C2 | TruePic VI |
Sensor type | CCD | CMOS |
Sensor size | 1/2.3" | 1/2.3" |
Sensor dimensions | 6.17 x 4.55mm | 6.17 x 4.55mm |
Sensor surface area | 28.1mm² | 28.1mm² |
Sensor resolution | 12 megapixel | 12 megapixel |
Anti alias filter | ||
Aspect ratio | 4:3 and 16:9 | - |
Highest Possible resolution | 4000 x 3000 | 3968 x 2976 |
Maximum native ISO | 1600 | 6400 |
Lowest native ISO | 100 | 100 |
RAW pictures | ||
Autofocusing | ||
Manual focusing | ||
AF touch | ||
Continuous AF | ||
Single AF | ||
AF tracking | ||
AF selectice | ||
AF center weighted | ||
AF multi area | ||
Live view AF | ||
Face detection AF | ||
Contract detection AF | ||
Phase detection AF | ||
Cross type focus points | - | - |
Lens | ||
Lens support | fixed lens | fixed lens |
Lens zoom range | 28-140mm (5.0x) | 28-140mm (5.0x) |
Largest aperture | f/2.7-6.6 | f/3.9-5.9 |
Macro focusing range | 2cm | 1cm |
Focal length multiplier | 5.8 | 5.8 |
Screen | ||
Range of screen | Fixed Type | Fixed Type |
Screen sizing | 2.7 inches | 3 inches |
Resolution of screen | 230 thousand dot | 1,030 thousand dot |
Selfie friendly | ||
Liveview | ||
Touch screen | ||
Screen technology | - | HyperCrystal III TFT Color LCD |
Viewfinder Information | ||
Viewfinder | None | None |
Features | ||
Min shutter speed | 4 secs | 4 secs |
Max shutter speed | 1/1500 secs | 1/2000 secs |
Continuous shutter speed | - | 5.0 frames per sec |
Shutter priority | ||
Aperture priority | ||
Manual exposure | ||
Set WB | ||
Image stabilization | ||
Built-in flash | ||
Flash distance | - | 3.50 m |
Flash modes | Auto, On, Off, Red-eye, Fill-in, Slow Syncro | Auto, On, Off, Red-Eye, Fill-in |
Hot shoe | ||
AEB | ||
White balance bracketing | ||
Exposure | ||
Multisegment exposure | ||
Average exposure | ||
Spot exposure | ||
Partial exposure | ||
AF area exposure | ||
Center weighted exposure | ||
Video features | ||
Supported video resolutions | 1280 x 720 (30 fps), 640 x 480 (30 fps), 320 x 240 (30 fps) | 1920 x 1080 (30 fps)1280 x 720 (30 fps), 640 x 480 (30 fps), 320 x 180 (30fps) |
Maximum video resolution | 1280x720 | 1920x1080 |
Video data format | Motion JPEG | MPEG-4, H.264 |
Mic input | ||
Headphone input | ||
Connectivity | ||
Wireless | None | None |
Bluetooth | ||
NFC | ||
HDMI | ||
USB | USB 2.0 (480 Mbit/sec) | USB 2.0 (480 Mbit/sec) |
GPS | None | None |
Physical | ||
Environmental seal | ||
Water proofing | ||
Dust proofing | ||
Shock proofing | ||
Crush proofing | ||
Freeze proofing | ||
Weight | 132 gr (0.29 pounds) | 206 gr (0.45 pounds) |
Dimensions | 97 x 57 x 22mm (3.8" x 2.2" x 0.9") | 101 x 65 x 26mm (4.0" x 2.6" x 1.0") |
DXO scores | ||
DXO Overall rating | not tested | not tested |
DXO Color Depth rating | not tested | not tested |
DXO Dynamic range rating | not tested | not tested |
DXO Low light rating | not tested | not tested |
Other | ||
Battery life | - | 220 photos |
Battery format | - | Battery Pack |
Battery ID | EN-EL10 | LI-50B |
Self timer | Yes | Yes (2 or 12 sec, pet auto shutter) |
Time lapse feature | ||
Storage media | SD/SDHC, Internal | SD/SDHC/SDXC |
Storage slots | 1 | 1 |
Pricing at release | $200 | $500 |
