Olympus E-P1 vs Sony W690
86 Imaging
47 Features
42 Overall
45
95 Imaging
39 Features
32 Overall
36
Olympus E-P1 vs Sony W690 Key Specs
(Full Review)
- 12MP - Four Thirds Sensor
- 3" Fixed Screen
- ISO 100 - 6400
- Sensor based Image Stabilization
- 1280 x 720 video
- Micro Four Thirds Mount
- 355g - 121 x 70 x 36mm
- Revealed July 2009
- Newer Model is Olympus E-P2
(Full Review)
- 16MP - 1/2.3" Sensor
- 3" Fixed Screen
- ISO 80 - 3200
- Optical Image Stabilization
- 1280 x 720 video
- 25-250mm (F3.3-5.9) lens
- 142g - 94 x 56 x 22mm
- Revealed February 2012
Olympus E-P1 vs Sony W690 Overview
The following is a in depth analysis of the Olympus E-P1 vs Sony W690, one is a Entry-Level Mirrorless and the latter is a Small Sensor Compact by companies Olympus and Sony. There is a significant difference among the sensor resolutions of the E-P1 (12MP) and W690 (16MP) and the E-P1 (Four Thirds) and W690 (1/2.3") boast totally different sensor sizes.
Body cameras now worn by bakery staff to deter stealingThe E-P1 was manufactured 3 years earlier than the W690 which is a fairly sizable gap as far as camera tech is concerned. Both of these cameras feature different body design with the Olympus E-P1 being a Rangefinder-style mirrorless camera and the Sony W690 being a Compact camera.
Before going into a thorough comparison, here is a quick overview of how the E-P1 grades versus the W690 in regards to portability, imaging, features and an overall mark.
Olympus E-P1 vs Sony W690 Gallery
This is a preview of the gallery photos for Olympus PEN E-P1 and Sony Cyber-shot DSC-W690. The entire galleries are viewable at Olympus E-P1 Gallery and Sony W690 Gallery.
Reasons to pick Olympus E-P1 over the Sony W690
E-P1 | W690 | |||
---|---|---|---|---|
Manual focus | More accurate focusing |
Reasons to pick Sony W690 over the Olympus E-P1
W690 | E-P1 | |||
---|---|---|---|---|
Revealed | February 2012 | July 2009 | Newer by 31 months |
Common features in the Olympus E-P1 and Sony W690
E-P1 | W690 | |||
---|---|---|---|---|
Screen type | Fixed | Fixed | Fixed screen | |
Screen size | 3" | 3" | Same screen dimensions | |
Screen resolution | 230k | 230k | Same screen resolution | |
Selfie screen | Neither offers selfie screen | |||
Touch screen | Missing Touch screen |
Olympus E-P1 vs Sony W690 Physical Comparison
In case you're going to travel with your camera often, you are going to need to take into account its weight and dimensions. The Olympus E-P1 offers outside measurements of 121mm x 70mm x 36mm (4.8" x 2.8" x 1.4") along with a weight of 355 grams (0.78 lbs) while the Sony W690 has dimensions of 94mm x 56mm x 22mm (3.7" x 2.2" x 0.9") having a weight of 142 grams (0.31 lbs).

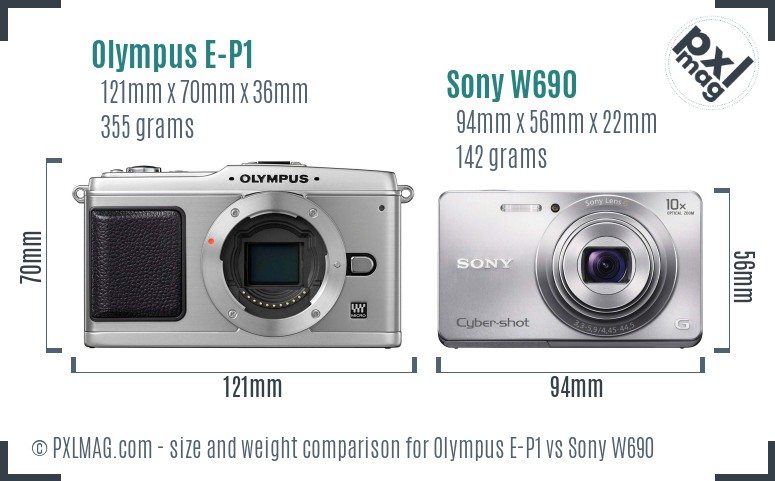

Look at the Olympus E-P1 vs Sony W690 in the latest Camera and Lens Size Comparison Tool.Bear in mind, the weight of an Interchangeable Lens Camera will change based on the lens you select during that time. Underneath is a front view dimension comparison of the E-P1 and the W690.
Considering size and weight, the portability score of the E-P1 and W690 is 86 and 95 respectively.
Olympus E-P1 vs Sony W690 Sensor Comparison
Often, it can be difficult to envision the contrast in sensor dimensions just by looking through technical specs. The picture below will offer you a stronger sense of the sensor measurements in the E-P1 and W690.
As you can tell, both the cameras come with different megapixel count and different sensor dimensions. The E-P1 because of its bigger sensor will make getting shallow DOF simpler and the Sony W690 will render more detail due to its extra 4MP. Higher resolution will also enable you to crop photographs a good deal more aggressively. The more aged E-P1 will be disadvantaged when it comes to sensor technology.
Olympus E-P1 vs Sony W690 Screen and ViewFinder
Photography Type Scores
Portrait Comparison
Street Comparison
Sports Comparison
Travel Comparison
Landscape Comparison
Vlogging Comparison
Olympus E-P1 vs Sony W690 Specifications
Olympus PEN E-P1 | Sony Cyber-shot DSC-W690 | |
---|---|---|
General Information | ||
Company | Olympus | Sony |
Model | Olympus PEN E-P1 | Sony Cyber-shot DSC-W690 |
Class | Entry-Level Mirrorless | Small Sensor Compact |
Revealed | 2009-07-29 | 2012-02-28 |
Physical type | Rangefinder-style mirrorless | Compact |
Sensor Information | ||
Powered by | TruePic V | BIONZ |
Sensor type | CMOS | CCD |
Sensor size | Four Thirds | 1/2.3" |
Sensor measurements | 17.3 x 13mm | 6.17 x 4.55mm |
Sensor surface area | 224.9mm² | 28.1mm² |
Sensor resolution | 12MP | 16MP |
Anti aliasing filter | ||
Aspect ratio | 1:1, 4:3, 3:2 and 16:9 | 4:3 and 16:9 |
Highest resolution | 4032 x 3024 | 4608 x 3456 |
Highest native ISO | 6400 | 3200 |
Min native ISO | 100 | 80 |
RAW support | ||
Autofocusing | ||
Focus manually | ||
Autofocus touch | ||
Continuous autofocus | ||
Autofocus single | ||
Tracking autofocus | ||
Autofocus selectice | ||
Autofocus center weighted | ||
Autofocus multi area | ||
Live view autofocus | ||
Face detection focus | ||
Contract detection focus | ||
Phase detection focus | ||
Number of focus points | 11 | - |
Cross focus points | - | - |
Lens | ||
Lens mount | Micro Four Thirds | fixed lens |
Lens focal range | - | 25-250mm (10.0x) |
Maximum aperture | - | f/3.3-5.9 |
Macro focus range | - | 5cm |
Number of lenses | 107 | - |
Focal length multiplier | 2.1 | 5.8 |
Screen | ||
Screen type | Fixed Type | Fixed Type |
Screen size | 3 inch | 3 inch |
Screen resolution | 230 thousand dots | 230 thousand dots |
Selfie friendly | ||
Liveview | ||
Touch capability | ||
Screen tech | HyperCrystal LCD with AR(Anti-Reflective) coating | ClearPhoto TFT LCD display |
Viewfinder Information | ||
Viewfinder | None | None |
Features | ||
Slowest shutter speed | 60 seconds | 30 seconds |
Maximum shutter speed | 1/4000 seconds | 1/1600 seconds |
Continuous shooting rate | 3.0fps | 1.0fps |
Shutter priority | ||
Aperture priority | ||
Expose Manually | ||
Exposure compensation | Yes | - |
Custom white balance | ||
Image stabilization | ||
Built-in flash | ||
Flash range | no built-in flash | 3.30 m |
Flash settings | Auto, On, Off, Red-Eye, Fill-in, Slow Sync, Manual (3 levels) | Auto, On, Off, Slow Sync |
External flash | ||
AE bracketing | ||
White balance bracketing | ||
Maximum flash synchronize | 1/180 seconds | - |
Exposure | ||
Multisegment metering | ||
Average metering | ||
Spot metering | ||
Partial metering | ||
AF area metering | ||
Center weighted metering | ||
Video features | ||
Supported video resolutions | 1280 x 720 (30 fps), 640 x 480 (30 fps) | 1280 x 720 (30 fps), 640 x 480 (30 fps) |
Highest video resolution | 1280x720 | 1280x720 |
Video file format | Motion JPEG | MPEG-4 |
Microphone support | ||
Headphone support | ||
Connectivity | ||
Wireless | None | None |
Bluetooth | ||
NFC | ||
HDMI | ||
USB | USB 2.0 (480 Mbit/sec) | USB 2.0 (480 Mbit/sec) |
GPS | None | None |
Physical | ||
Environmental sealing | ||
Water proof | ||
Dust proof | ||
Shock proof | ||
Crush proof | ||
Freeze proof | ||
Weight | 355 grams (0.78 pounds) | 142 grams (0.31 pounds) |
Physical dimensions | 121 x 70 x 36mm (4.8" x 2.8" x 1.4") | 94 x 56 x 22mm (3.7" x 2.2" x 0.9") |
DXO scores | ||
DXO All around score | 55 | not tested |
DXO Color Depth score | 21.4 | not tested |
DXO Dynamic range score | 10.4 | not tested |
DXO Low light score | 536 | not tested |
Other | ||
Battery life | 300 shots | 220 shots |
Style of battery | Battery Pack | Battery Pack |
Battery model | BLS-1 | NP-BN |
Self timer | Yes (2 or 12 sec) | Yes (2 or 10 sec, Portrait 1/2) |
Time lapse recording | ||
Storage type | SD/SDHC card | SD/SDHC/SDXC/Memory Stick Duo/Memory Stick Pro Duo, Memory Stick Pro-HG Duo |
Card slots | 1 | 1 |
Cost at launch | $182 | $297 |
