Olympus TG-860 vs Panasonic FX580
91 Imaging
40 Features
42 Overall
40
95 Imaging
34 Features
29 Overall
32
Olympus TG-860 vs Panasonic FX580 Key Specs
(Full Review)
- 16MP - 1/2.3" Sensor
- 3" Tilting Display
- ISO 125 - 6400
- Optical Image Stabilization
- 1920 x 1080 video
- 21-105mm (F3.5-5.7) lens
- 224g - 110 x 64 x 28mm
- Launched February 2015
- New Model is Olympus TG-870
(Full Review)
- 12MP - 1/2.3" Sensor
- 3" Fixed Screen
- ISO 80 - 1600 (Boost to 6400)
- Optical Image Stabilization
- 1280 x 720 video
- 25-125mm (F2.8-5.9) lens
- 167g - 95 x 57 x 22mm
- Released January 2009
- Alternative Name is Lumix DMC-FX550
Snapchat Adds Watermarks to AI-Created Images Olympus TG-860 vs Panasonic FX580 Overview
Its time to take a deeper look at the Olympus TG-860 vs Panasonic FX580, one being a Waterproof and the latter is a Small Sensor Compact by manufacturers Olympus and Panasonic. There is a significant difference among the image resolutions of the TG-860 (16MP) and FX580 (12MP) but both cameras offer the same sensor sizing (1/2.3").
Apple Innovates by Creating Next-Level Optical Stabilization for iPhoneThe TG-860 was announced 6 years later than the FX580 and that is a fairly sizable gap as far as camera tech is concerned. Each of these cameras have different body design with the Olympus TG-860 being a Ultracompact camera and the Panasonic FX580 being a Compact camera.
Before we go straight to a step-by-step comparison, here is a concise synopsis of how the TG-860 grades against the FX580 in regards to portability, imaging, features and an overall rating.
Pentax 17 Pre-Orders Outperform Expectations by a Landslide Olympus TG-860 vs Panasonic FX580 Gallery
Following is a preview of the gallery photos for Olympus Stylus Tough TG-860 and Panasonic Lumix DMC-FX580. The whole galleries are available at Olympus TG-860 Gallery and Panasonic FX580 Gallery.
Reasons to pick Olympus TG-860 over the Panasonic FX580
| TG-860 | FX580 | |||
|---|---|---|---|---|
| Released | February 2015 |  | January 2009 | Fresher by 74 months |
| Screen type | Tilting |  | Fixed | Tilting screen |
| Screen resolution | 460k |  | 230k | Crisper screen (+230k dot) |
Reasons to pick Panasonic FX580 over the Olympus TG-860
| FX580 | TG-860 |
|---|
Common features in the Olympus TG-860 and Panasonic FX580
| TG-860 | FX580 | |||
|---|---|---|---|---|
| Manual focus |  | No manual focusing | ||
| Screen dimensions | 3" |  | 3" | Equal screen measurement |
| Selfie screen |  | Lack of selfie screen | ||
| Touch friendly screen |  | Lack of Touch friendly screen |
Olympus TG-860 vs Panasonic FX580 Physical Comparison
In case you're intending to carry your camera frequently, you will want to take into account its weight and dimensions. The Olympus TG-860 enjoys outside measurements of 110mm x 64mm x 28mm (4.3" x 2.5" x 1.1") with a weight of 224 grams (0.49 lbs) whilst the Panasonic FX580 has dimensions of 95mm x 57mm x 22mm (3.7" x 2.2" x 0.9") accompanied by a weight of 167 grams (0.37 lbs).
Take a look at the Olympus TG-860 vs Panasonic FX580 in the latest Camera with Lens Size Comparison Tool.

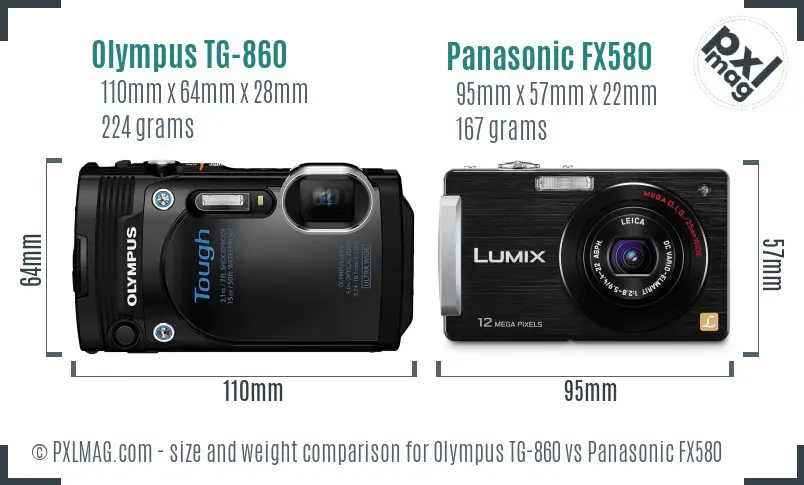

Take into consideration, the weight of an Interchangeable Lens Camera will change dependant on the lens you are using during that time. Following is a front view over all size comparison of the TG-860 and the FX580.
Considering size and weight, the portability score of the TG-860 and FX580 is 91 and 95 respectively.
Olympus TG-860 vs Panasonic FX580 Sensor Comparison

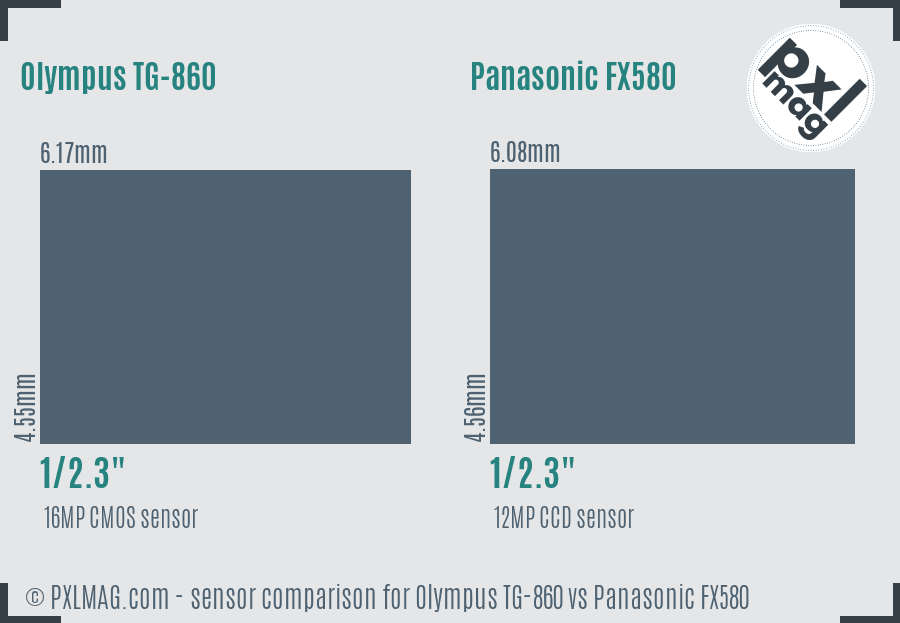

Oftentimes, it is difficult to visualise the difference in sensor sizing just by seeing specs. The photograph underneath should give you a more clear sense of the sensor measurements in the TG-860 and FX580.
As you can plainly see, the two cameras provide the same sensor dimensions albeit not the same resolution. You should count on the Olympus TG-860 to produce more detail with its extra 4MP. Higher resolution will help you crop photographs more aggressively. The fresher TG-860 will have a benefit when it comes to sensor tech.

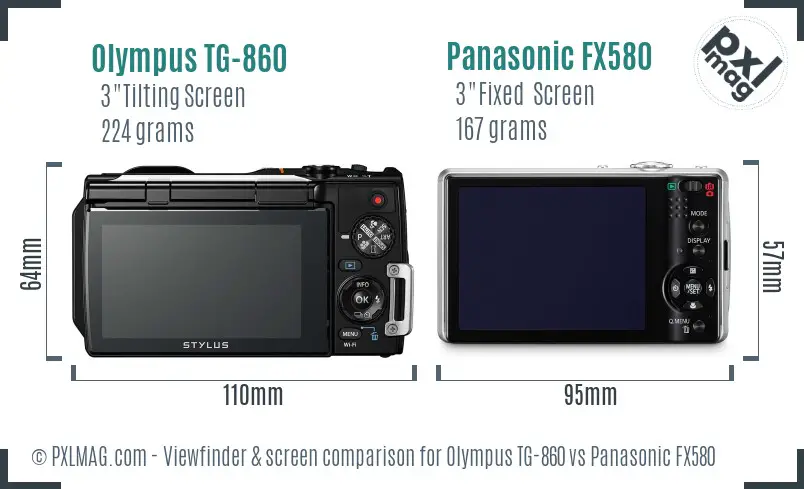

Olympus TG-860 vs Panasonic FX580 Screen and ViewFinder
Meta to Introduce 'AI-Generated' Labels for Media starting next month Photography Type Scores
Portrait Comparison
Photography GlossaryStreet Comparison
Sora from OpenAI releases its first ever music videoSports Comparison
Photobucket discusses licensing 13 billion images with AI firmsTravel Comparison
Samsung Releases Faster Versions of EVO MicroSD CardsLandscape Comparison
President Biden pushes bill mandating TikTok sale or banVlogging Comparison
Japan-exclusive Leica Leitz Phone 3 features big sensor and new modes
Olympus TG-860 vs Panasonic FX580 Specifications
| Olympus Stylus Tough TG-860 | Panasonic Lumix DMC-FX580 | |
|---|---|---|
| General Information | ||
| Manufacturer | Olympus | Panasonic |
| Model type | Olympus Stylus Tough TG-860 | Panasonic Lumix DMC-FX580 |
| Also referred to as | - | Lumix DMC-FX550 |
| Class | Waterproof | Small Sensor Compact |
| Launched | 2015-02-06 | 2009-01-27 |
| Physical type | Ultracompact | Compact |
| Sensor Information | ||
| Processor | TruePic VII | - |
| Sensor type | CMOS | CCD |
| Sensor size | 1/2.3" | 1/2.3" |
| Sensor dimensions | 6.17 x 4.55mm | 6.08 x 4.56mm |
| Sensor area | 28.1mm² | 27.7mm² |
| Sensor resolution | 16MP | 12MP |
| Anti alias filter | ||
| Aspect ratio | 1:1, 4:3, 3:2 and 16:9 | 16:9, 4:3 and 3:2 |
| Highest resolution | 4608 x 3456 | 4000 x 3000 |
| Highest native ISO | 6400 | 1600 |
| Highest boosted ISO | - | 6400 |
| Lowest native ISO | 125 | 80 |
| RAW format | ||
| Autofocusing | ||
| Focus manually | ||
| Touch to focus | ||
| AF continuous | ||
| Single AF | ||
| Tracking AF | ||
| Selective AF | ||
| Center weighted AF | ||
| Multi area AF | ||
| AF live view | ||
| Face detect focusing | ||
| Contract detect focusing | ||
| Phase detect focusing | ||
| Total focus points | - | 11 |
| Lens | ||
| Lens mount type | fixed lens | fixed lens |
| Lens zoom range | 21-105mm (5.0x) | 25-125mm (5.0x) |
| Maximal aperture | f/3.5-5.7 | f/2.8-5.9 |
| Macro focusing distance | 1cm | 5cm |
| Crop factor | 5.8 | 5.9 |
| Screen | ||
| Display type | Tilting | Fixed Type |
| Display sizing | 3 inch | 3 inch |
| Display resolution | 460k dots | 230k dots |
| Selfie friendly | ||
| Liveview | ||
| Touch screen | ||
| Viewfinder Information | ||
| Viewfinder type | None | None |
| Features | ||
| Lowest shutter speed | 4 seconds | 60 seconds |
| Highest shutter speed | 1/2000 seconds | 1/2000 seconds |
| Continuous shooting rate | 7.0 frames per sec | 2.0 frames per sec |
| Shutter priority | ||
| Aperture priority | ||
| Expose Manually | ||
| Change WB | ||
| Image stabilization | ||
| Inbuilt flash | ||
| Flash distance | 4.00 m (at ISO 1600) | 6.00 m |
| Flash options | Auto, redeye reduction, fill flash, off, LED illuminator | Auto, On, Off, Red-Eye reduction, Slow Sync |
| External flash | ||
| AE bracketing | ||
| WB bracketing | ||
| Exposure | ||
| Multisegment metering | ||
| Average metering | ||
| Spot metering | ||
| Partial metering | ||
| AF area metering | ||
| Center weighted metering | ||
| Video features | ||
| Video resolutions | 1920 x 1080 (60p), 1280 x 720 (60p), 640 x 480 (60p) | 1280 x 720 (30 fps), 848 x 480 (30 fps), 640 x 480 (30 fps), 320 x 240 (30 fps) |
| Highest video resolution | 1920x1080 | 1280x720 |
| Video file format | H.264 | Motion JPEG |
| Mic support | ||
| Headphone support | ||
| Connectivity | ||
| Wireless | Built-In | None |
| Bluetooth | ||
| NFC | ||
| HDMI | ||
| USB | USB 2.0 (480 Mbit/sec) | USB 2.0 (480 Mbit/sec) |
| GPS | Yes | None |
| Physical | ||
| Environment sealing | ||
| Water proofing | ||
| Dust proofing | ||
| Shock proofing | ||
| Crush proofing | ||
| Freeze proofing | ||
| Weight | 224 gr (0.49 lbs) | 167 gr (0.37 lbs) |
| Physical dimensions | 110 x 64 x 28mm (4.3" x 2.5" x 1.1") | 95 x 57 x 22mm (3.7" x 2.2" x 0.9") |
| DXO scores | ||
| DXO All around rating | not tested | not tested |
| DXO Color Depth rating | not tested | not tested |
| DXO Dynamic range rating | not tested | not tested |
| DXO Low light rating | not tested | not tested |
| Other | ||
| Battery life | 300 shots | - |
| Battery style | Battery Pack | - |
| Battery ID | Li-50B | - |
| Self timer | Yes (2 or 10 sec, custom) | Yes (2 or 10 sec) |
| Time lapse feature | ||
| Type of storage | SD/SDHC/SDXC, Internal | SD/MMC/SDHC card, Internal |
| Card slots | 1 | 1 |
| Retail pricing | $279 | $499 |
