Panasonic FH5 vs Panasonic TS20
96 Imaging
39 Features
31 Overall
35
95 Imaging
39 Features
28 Overall
34
Panasonic FH5 vs Panasonic TS20 Key Specs
(Full Review)
- 16MP - 1/2.3" Sensor
- 2.7" Fixed Display
- ISO 100 - 6400
- Optical Image Stabilization
- 1280 x 720 video
- 28-112mm (F3.1-6.5) lens
- 121g - 94 x 54 x 19mm
- Announced January 2011
- Alternate Name is Lumix DMC-FS18
(Full Review)
- 16MP - 1/2.3" Sensor
- 2.7" Fixed Display
- ISO 100 - 6400
- Optical Image Stabilization
- 1280 x 720 video
- 25-100mm (F3.9-5.7) lens
- 142g - 101 x 58 x 19mm
- Released January 2012
- Alternative Name is Lumix DMC-FT20
Panasonic FH5 vs Panasonic TS20 Overview
Here is a detailed comparison of the Panasonic FH5 vs Panasonic TS20, former being a Small Sensor Compact while the other is a Waterproof and they are both manufactured by Panasonic. The resolution of the FH5 (16MP) and the TS20 (16MP) is fairly similar and both cameras offer the identical sensor sizes (1/2.3").
Snapchat Adds Watermarks to AI-Created ImagesThe FH5 was announced 13 months prior to the TS20 making them a generation apart from one another. Both of the cameras feature the same body design (Compact).
Before getting right into a detailed comparison, here is a simple synopsis of how the FH5 scores vs the TS20 in the way of portability, imaging, features and an overall rating.
Panasonic FH5 vs Panasonic TS20 Gallery
Here is a sample of the gallery pictures for Panasonic Lumix DMC-FH5 & Panasonic Lumix DMC-TS20. The whole galleries are available at Panasonic FH5 Gallery & Panasonic TS20 Gallery.
Reasons to pick Panasonic FH5 over the Panasonic TS20
FH5 | TS20 |
---|
Reasons to pick Panasonic TS20 over the Panasonic FH5
TS20 | FH5 | |||
---|---|---|---|---|
Released | January 2012 | January 2011 | Fresher by 13 months |
Common features in the Panasonic FH5 and Panasonic TS20
FH5 | TS20 | |||
---|---|---|---|---|
Focus manually | No manual focusing | |||
Display type | Fixed | Fixed | Fixed display | |
Display size | 2.7" | 2.7" | Same display dimensions | |
Display resolution | 230k | 230k | Exact same display resolution | |
Selfie screen | Neither includes selfie screen | |||
Touch display | Neither includes Touch display |

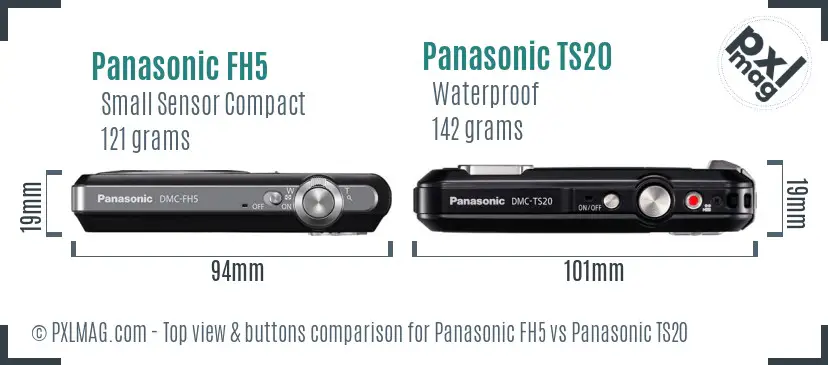

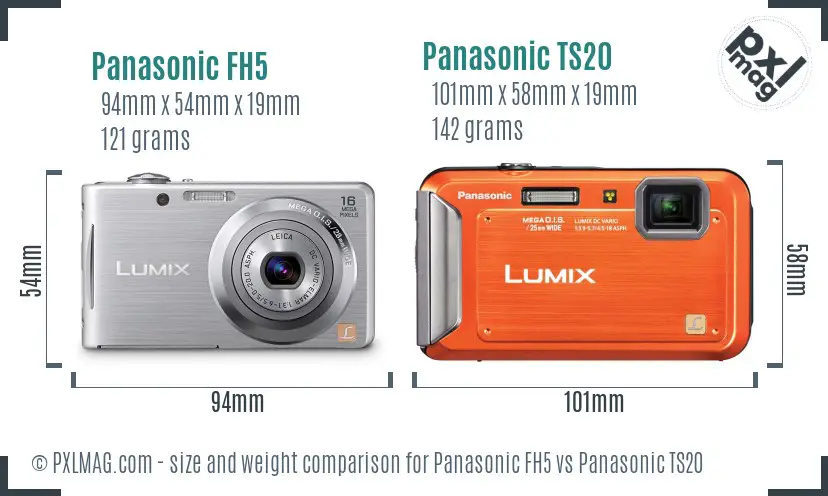

Panasonic FH5 vs Panasonic TS20 Physical Comparison
When you are intending to carry your camera often, you should take into account its weight and dimensions. The Panasonic FH5 features external measurements of 94mm x 54mm x 19mm (3.7" x 2.1" x 0.7") along with a weight of 121 grams (0.27 lbs) and the Panasonic TS20 has dimensions of 101mm x 58mm x 19mm (4.0" x 2.3" x 0.7") along with a weight of 142 grams (0.31 lbs).
Look at the Panasonic FH5 vs Panasonic TS20 in our brand new Camera & Lens Size Comparison Tool.Remember, the weight of an ILC will vary depending on the lens you select at that moment. Below is a front view sizing comparison of the FH5 versus the TS20.
Taking into account dimensions and weight, the portability rating of the FH5 and TS20 is 96 and 95 respectively.
Panasonic FH5 vs Panasonic TS20 Sensor Comparison
Typically, it can be hard to visualize the contrast between sensor sizing just by reading specifications. The visual underneath will offer you a more clear sense of the sensor sizing in the FH5 and TS20.
Plainly, each of these cameras feature the identical sensor size and the identical megapixels and you can expect similar quality of files but you will need to consider the launch date of the products into consideration. The older FH5 is going to be behind in sensor innovation.

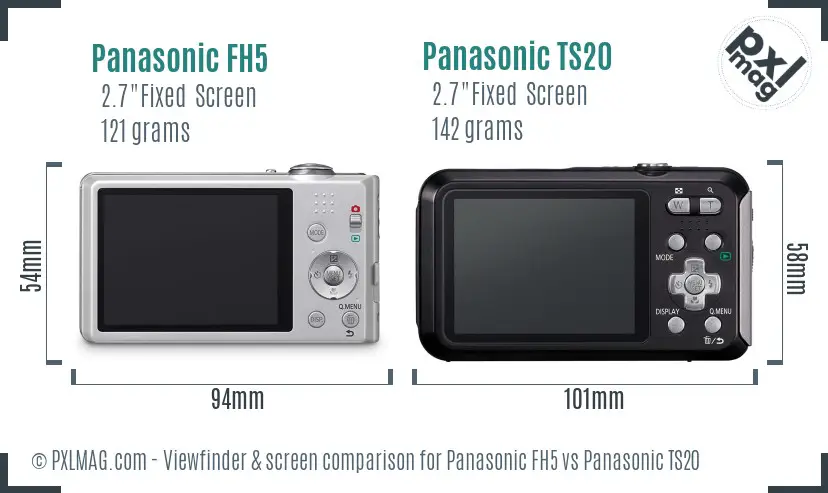

Panasonic FH5 vs Panasonic TS20 Screen and ViewFinder
Photography Type Scores
Portrait Comparison
Street Comparison
Sports Comparison
Travel Comparison
Landscape Comparison
Vlogging Comparison
Panasonic FH5 vs Panasonic TS20 Specifications
Panasonic Lumix DMC-FH5 | Panasonic Lumix DMC-TS20 | |
---|---|---|
General Information | ||
Brand Name | Panasonic | Panasonic |
Model | Panasonic Lumix DMC-FH5 | Panasonic Lumix DMC-TS20 |
Also called as | Lumix DMC-FS18 | Lumix DMC-FT20 |
Category | Small Sensor Compact | Waterproof |
Announced | 2011-01-05 | 2012-01-31 |
Body design | Compact | Compact |
Sensor Information | ||
Processor | Venus Engine IV | - |
Sensor type | CCD | CCD |
Sensor size | 1/2.3" | 1/2.3" |
Sensor dimensions | 6.08 x 4.56mm | 6.08 x 4.56mm |
Sensor surface area | 27.7mm² | 27.7mm² |
Sensor resolution | 16MP | 16MP |
Anti aliasing filter | ||
Aspect ratio | 1:1, 4:3, 3:2 and 16:9 | 1:1, 4:3, 3:2 and 16:9 |
Full resolution | 4608 x 3456 | 4608 x 3456 |
Max native ISO | 6400 | 6400 |
Min native ISO | 100 | 100 |
RAW format | ||
Autofocusing | ||
Focus manually | ||
Touch to focus | ||
Autofocus continuous | ||
Autofocus single | ||
Autofocus tracking | ||
Autofocus selectice | ||
Center weighted autofocus | ||
Multi area autofocus | ||
Live view autofocus | ||
Face detect focus | ||
Contract detect focus | ||
Phase detect focus | ||
Number of focus points | 11 | 23 |
Lens | ||
Lens mount | fixed lens | fixed lens |
Lens focal range | 28-112mm (4.0x) | 25-100mm (4.0x) |
Largest aperture | f/3.1-6.5 | f/3.9-5.7 |
Macro focus distance | 5cm | 5cm |
Focal length multiplier | 5.9 | 5.9 |
Screen | ||
Display type | Fixed Type | Fixed Type |
Display diagonal | 2.7 inches | 2.7 inches |
Resolution of display | 230k dot | 230k dot |
Selfie friendly | ||
Liveview | ||
Touch friendly | ||
Display technology | - | TFT LCD |
Viewfinder Information | ||
Viewfinder type | None | None |
Features | ||
Slowest shutter speed | 60 secs | 8 secs |
Maximum shutter speed | 1/1600 secs | 1/1300 secs |
Continuous shooting speed | 4.0 frames per second | 1.0 frames per second |
Shutter priority | ||
Aperture priority | ||
Manual exposure | ||
Change white balance | ||
Image stabilization | ||
Built-in flash | ||
Flash range | 3.30 m | 4.40 m |
Flash settings | Auto, On, Off, Red-Eye reduction | Auto, On, Off, Red-eye, Slow Syncro |
External flash | ||
AE bracketing | ||
WB bracketing | ||
Exposure | ||
Multisegment metering | ||
Average metering | ||
Spot metering | ||
Partial metering | ||
AF area metering | ||
Center weighted metering | ||
Video features | ||
Supported video resolutions | 1280 x 720 (30 fps), 640 x 480 (30 fps), 320 x 240 (30 fps) | 1280 x 720 (30 fps), 640 x 480 (30 fps) |
Max video resolution | 1280x720 | 1280x720 |
Video format | Motion JPEG | MPEG-4 |
Mic jack | ||
Headphone jack | ||
Connectivity | ||
Wireless | None | None |
Bluetooth | ||
NFC | ||
HDMI | ||
USB | USB 2.0 (480 Mbit/sec) | USB 2.0 (480 Mbit/sec) |
GPS | None | None |
Physical | ||
Environmental seal | ||
Water proof | ||
Dust proof | ||
Shock proof | ||
Crush proof | ||
Freeze proof | ||
Weight | 121 grams (0.27 lbs) | 142 grams (0.31 lbs) |
Physical dimensions | 94 x 54 x 19mm (3.7" x 2.1" x 0.7") | 101 x 58 x 19mm (4.0" x 2.3" x 0.7") |
DXO scores | ||
DXO All around score | not tested | not tested |
DXO Color Depth score | not tested | not tested |
DXO Dynamic range score | not tested | not tested |
DXO Low light score | not tested | not tested |
Other | ||
Battery life | 260 pictures | 250 pictures |
Style of battery | Battery Pack | Battery Pack |
Self timer | Yes (2 or 10 sec) | Yes (2 or 10 sec) |
Time lapse shooting | ||
Storage media | SD/SDHC/SDXC, Internal | SD/SDHC/SDXC, Internal |
Storage slots | 1 | 1 |
Cost at launch | $169 | $179 |
