Panasonic TS1 vs Sony W230
93 Imaging
34 Features
24 Overall
30


95 Imaging
34 Features
25 Overall
30
Panasonic TS1 vs Sony W230 Key Specs
(Full Review)
- 12MP - 1/2.3" Sensor
- 2.7" Fixed Display
- ISO 80 - 6400
- Optical Image Stabilization
- 1280 x 720 video
- 28-128mm (F3.3-5.9) lens
- 189g - 98 x 63 x 23mm
- Released January 2009
- Alternative Name is Lumix DMC-FT1
- Updated by Panasonic TS2
(Full Review)
- 12MP - 1/2.3" Sensor
- 3" Fixed Screen
- ISO 80 - 3200
- Optical Image Stabilization
- 640 x 480 video
- 30-120mm (F2.8-5.8) lens
- 156g - 95 x 57 x 22mm
- Announced February 2009

Panasonic TS1 vs Sony W230 Overview
Its time to look a bit more in depth at the Panasonic TS1 vs Sony W230, former being a Waterproof while the latter is a Small Sensor Compact by manufacturers Panasonic and Sony. The resolution of the TS1 (12MP) and the W230 (12MP) is pretty comparable and they feature the exact same sensor dimensions (1/2.3").

The TS1 was manufactured very close to the W230 and they are both of a similar age. The two cameras come with the identical body type (Compact).
Before getting through a more detailed comparison, below is a short view of how the TS1 scores vs the W230 in terms of portability, imaging, features and an overall rating.

Panasonic TS1 vs Sony W230 Gallery
This is a preview of the gallery images for Panasonic Lumix DMC-TS1 & Sony Cyber-shot DSC-W230. The entire galleries are available at Panasonic TS1 Gallery & Sony W230 Gallery.
Reasons to pick Panasonic TS1 over the Sony W230
TS1 | W230 |
---|
Reasons to pick Sony W230 over the Panasonic TS1
W230 | TS1 | |||
---|---|---|---|---|
Manually focus | ![]() | Dial precise focusing | ||
Screen dimension | 3" | ![]() | 2.7" | Bigger screen (+0.3") |
Common features in the Panasonic TS1 and Sony W230
TS1 | W230 | |||
---|---|---|---|---|
Announced | January 2009 | ![]() | February 2009 | Same age |
Screen type | Fixed | ![]() | Fixed | Fixed screen |
Screen resolution | 230k | ![]() | 230k | Identical screen resolution |
Selfie screen | ![]() | Lacking selfie screen | ||
Touch friendly screen | ![]() | Lacking Touch friendly screen |
Panasonic TS1 vs Sony W230 Physical Comparison
For those who are going to carry your camera frequently, you need to take into account its weight and dimensions. The Panasonic TS1 has external measurements of 98mm x 63mm x 23mm (3.9" x 2.5" x 0.9") having a weight of 189 grams (0.42 lbs) while the Sony W230 has dimensions of 95mm x 57mm x 22mm (3.7" x 2.2" x 0.9") having a weight of 156 grams (0.34 lbs).
Analyze the Panasonic TS1 vs Sony W230 in our brand new Camera plus Lens Size Comparison Tool.

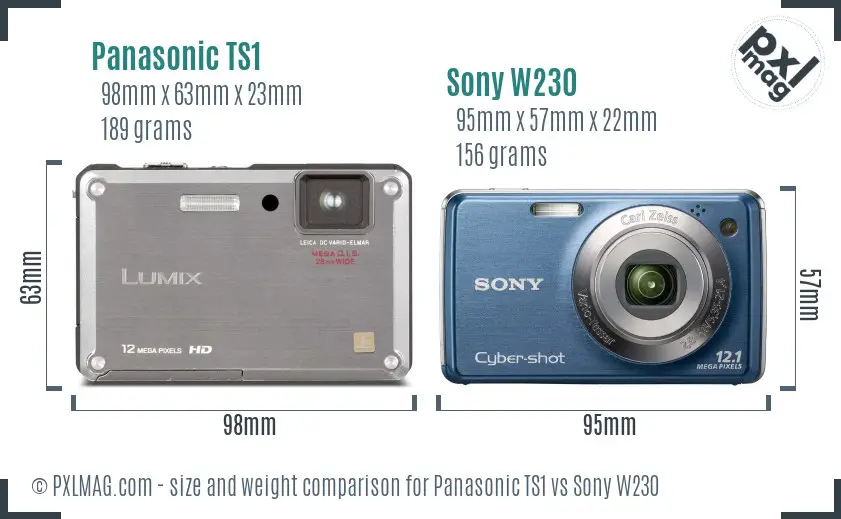

Always remember, the weight of an ILC will differ based on the lens you have chosen during that time. The following is the front view proportions comparison of the TS1 against the W230.

Using dimensions and weight, the portability score of the TS1 and W230 is 93 and 95 respectively.

Panasonic TS1 vs Sony W230 Sensor Comparison

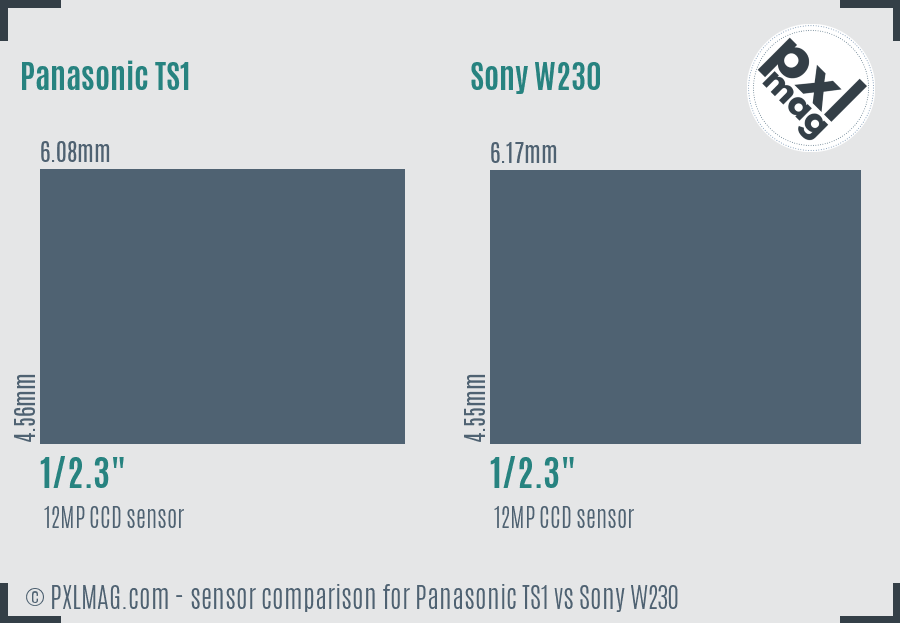

More often than not, its difficult to picture the contrast in sensor sizing merely by seeing specs. The graphic below will give you a far better sense of the sensor sizing in the TS1 and W230.
All in all, the 2 cameras have got the exact same sensor measurements and the identical megapixels and you can expect comparable quality of pictures however you will need to factor the age of the cameras into account.

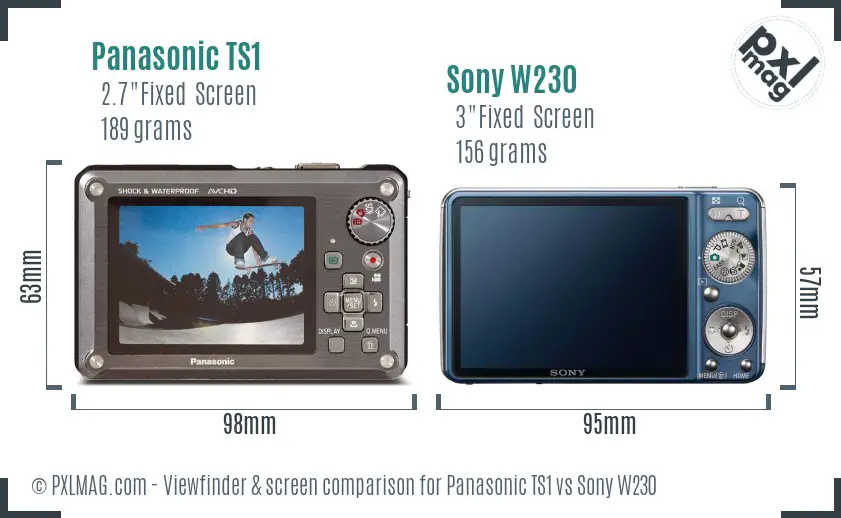

Panasonic TS1 vs Sony W230 Screen and ViewFinder


Photography Type Scores
Portrait Comparison

Street Comparison

Sports Comparison

Travel Comparison

Landscape Comparison

Vlogging Comparison

Panasonic TS1 vs Sony W230 Specifications
Panasonic Lumix DMC-TS1 | Sony Cyber-shot DSC-W230 | |
---|---|---|
General Information | ||
Brand Name | Panasonic | Sony |
Model | Panasonic Lumix DMC-TS1 | Sony Cyber-shot DSC-W230 |
Also called | Lumix DMC-FT1 | - |
Type | Waterproof | Small Sensor Compact |
Released | 2009-01-27 | 2009-02-17 |
Body design | Compact | Compact |
Sensor Information | ||
Sensor type | CCD | CCD |
Sensor size | 1/2.3" | 1/2.3" |
Sensor measurements | 6.08 x 4.56mm | 6.17 x 4.55mm |
Sensor surface area | 27.7mm² | 28.1mm² |
Sensor resolution | 12 megapixel | 12 megapixel |
Anti aliasing filter | ||
Aspect ratio | 4:3, 3:2 and 16:9 | 4:3, 3:2 and 16:9 |
Max resolution | 4000 x 3000 | 4000 x 3000 |
Max native ISO | 6400 | 3200 |
Minimum native ISO | 80 | 80 |
RAW photos | ||
Autofocusing | ||
Focus manually | ||
Touch to focus | ||
Continuous AF | ||
AF single | ||
AF tracking | ||
AF selectice | ||
AF center weighted | ||
AF multi area | ||
Live view AF | ||
Face detect AF | ||
Contract detect AF | ||
Phase detect AF | ||
Number of focus points | 11 | 9 |
Lens | ||
Lens mount | fixed lens | fixed lens |
Lens focal range | 28-128mm (4.6x) | 30-120mm (4.0x) |
Maximal aperture | f/3.3-5.9 | f/2.8-5.8 |
Macro focus range | 5cm | 4cm |
Focal length multiplier | 5.9 | 5.8 |
Screen | ||
Range of display | Fixed Type | Fixed Type |
Display sizing | 2.7 inches | 3 inches |
Resolution of display | 230k dot | 230k dot |
Selfie friendly | ||
Liveview | ||
Touch functionality | ||
Viewfinder Information | ||
Viewfinder type | None | None |
Features | ||
Minimum shutter speed | 60 seconds | 1 seconds |
Fastest shutter speed | 1/1300 seconds | 1/1600 seconds |
Continuous shutter speed | 2.0 frames per second | 2.0 frames per second |
Shutter priority | ||
Aperture priority | ||
Manually set exposure | ||
Change WB | ||
Image stabilization | ||
Inbuilt flash | ||
Flash range | - | 3.90 m |
Flash modes | Auto, On, Off, Red-eye, Slow Syncro | Auto, On, Off, Red-Eye reduction, Slow Sync |
External flash | ||
AE bracketing | ||
White balance bracketing | ||
Exposure | ||
Multisegment | ||
Average | ||
Spot | ||
Partial | ||
AF area | ||
Center weighted | ||
Video features | ||
Video resolutions | 1280 x 720 (30 fps), 848 x 480 (30 fps), 640 x 480 (30 fps), 320 x 240 (30 fps) | 640 x 480 (30 fps), 320 x 240 (30 fps) |
Max video resolution | 1280x720 | 640x480 |
Video file format | AVCHD Lite | Motion JPEG |
Microphone jack | ||
Headphone jack | ||
Connectivity | ||
Wireless | None | None |
Bluetooth | ||
NFC | ||
HDMI | ||
USB | USB 2.0 (480 Mbit/sec) | USB 2.0 (480 Mbit/sec) |
GPS | None | None |
Physical | ||
Environmental seal | ||
Water proof | ||
Dust proof | ||
Shock proof | ||
Crush proof | ||
Freeze proof | ||
Weight | 189g (0.42 lbs) | 156g (0.34 lbs) |
Dimensions | 98 x 63 x 23mm (3.9" x 2.5" x 0.9") | 95 x 57 x 22mm (3.7" x 2.2" x 0.9") |
DXO scores | ||
DXO Overall score | not tested | not tested |
DXO Color Depth score | not tested | not tested |
DXO Dynamic range score | not tested | not tested |
DXO Low light score | not tested | not tested |
Other | ||
Self timer | Yes (2 or 10 sec) | Yes (2 or 10 sec) |
Time lapse feature | ||
Type of storage | SD/MMC/SDHC, Internal | Memory Stick Duo / Pro Duo, Internal |
Storage slots | Single | Single |
Retail cost | $380 | $180 |
