Panasonic ZR1 vs Sony W690
94 Imaging
34 Features
17 Overall
27


95 Imaging
39 Features
32 Overall
36
Panasonic ZR1 vs Sony W690 Key Specs
(Full Review)
- 12MP - 1/2.3" Sensor
- 2.7" Fixed Screen
- ISO 80 - 6400
- Optical Image Stabilization
- 1280 x 720 video
- 25-200mm (F3.3-5.9) lens
- 158g - 98 x 55 x 26mm
- Released July 2009
- Additionally referred to as Lumix DMC-ZX1
(Full Review)
- 16MP - 1/2.3" Sensor
- 3" Fixed Display
- ISO 80 - 3200
- Optical Image Stabilization
- 1280 x 720 video
- 25-250mm (F3.3-5.9) lens
- 142g - 94 x 56 x 22mm
- Revealed February 2012

Panasonic ZR1 vs Sony W690 Overview
Below is a thorough review of the Panasonic ZR1 versus Sony W690, both Small Sensor Compact digital cameras by rivals Panasonic and Sony. There is a large difference between the image resolutions of the ZR1 (12MP) and W690 (16MP) but they possess the exact same sensor dimensions (1/2.3").

The ZR1 was unveiled 3 years before the W690 and that is quite a serious difference as far as tech is concerned. Both cameras come with the identical body type (Compact).
Before we go in to a detailed comparison, below is a quick introduction of how the ZR1 matches up vs the W690 with regard to portability, imaging, features and an overall grade.

Panasonic ZR1 vs Sony W690 Gallery
This is a sample of the gallery pics for Panasonic Lumix DMC-ZR1 & Sony Cyber-shot DSC-W690. The full galleries are viewable at Panasonic ZR1 Gallery & Sony W690 Gallery.
Reasons to pick Panasonic ZR1 over the Sony W690
ZR1 | W690 |
---|
Reasons to pick Sony W690 over the Panasonic ZR1
W690 | ZR1 | |||
---|---|---|---|---|
Revealed | February 2012 | ![]() | July 2009 | More recent by 31 months |
Display dimension | 3" | ![]() | 2.7" | Larger display (+0.3") |
Common features in the Panasonic ZR1 and Sony W690
ZR1 | W690 | |||
---|---|---|---|---|
Manual focus | ![]() | Lack of manual focusing | ||
Display type | Fixed | ![]() | Fixed | Fixed display |
Display resolution | 230k | ![]() | 230k | Identical display resolution |
Selfie screen | ![]() | Lack of selfie screen | ||
Touch display | ![]() | Lack of Touch display |

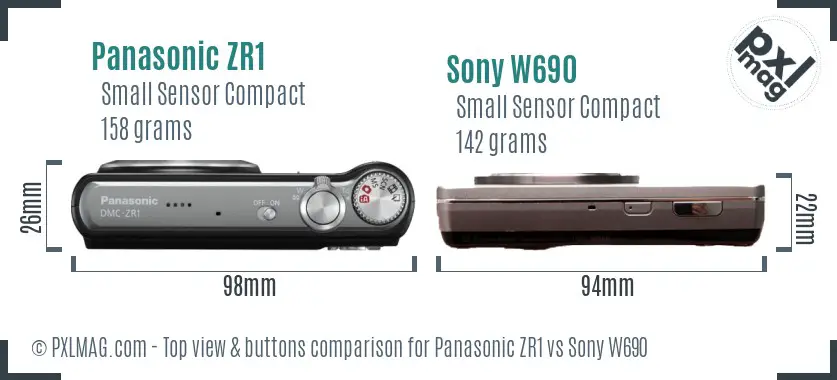

Panasonic ZR1 vs Sony W690 Physical Comparison
In case you're aiming to lug around your camera regularly, you'll need to factor its weight and volume. The Panasonic ZR1 enjoys physical dimensions of 98mm x 55mm x 26mm (3.9" x 2.2" x 1.0") and a weight of 158 grams (0.35 lbs) while the Sony W690 has sizing of 94mm x 56mm x 22mm (3.7" x 2.2" x 0.9") accompanied by a weight of 142 grams (0.31 lbs).
Contrast the Panasonic ZR1 versus Sony W690 in our newest Camera & Lens Size Comparison Tool.

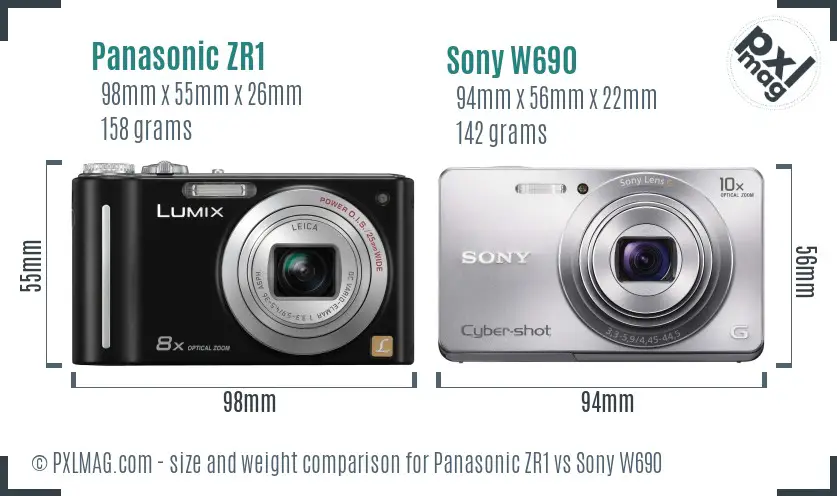

Bear in mind, the weight of an ILC will change based on the lens you are utilising at that moment. Underneath is the front view scale comparison of the ZR1 compared to the W690.

Using size and weight, the portability grade of the ZR1 and W690 is 94 and 95 respectively.

Panasonic ZR1 vs Sony W690 Sensor Comparison

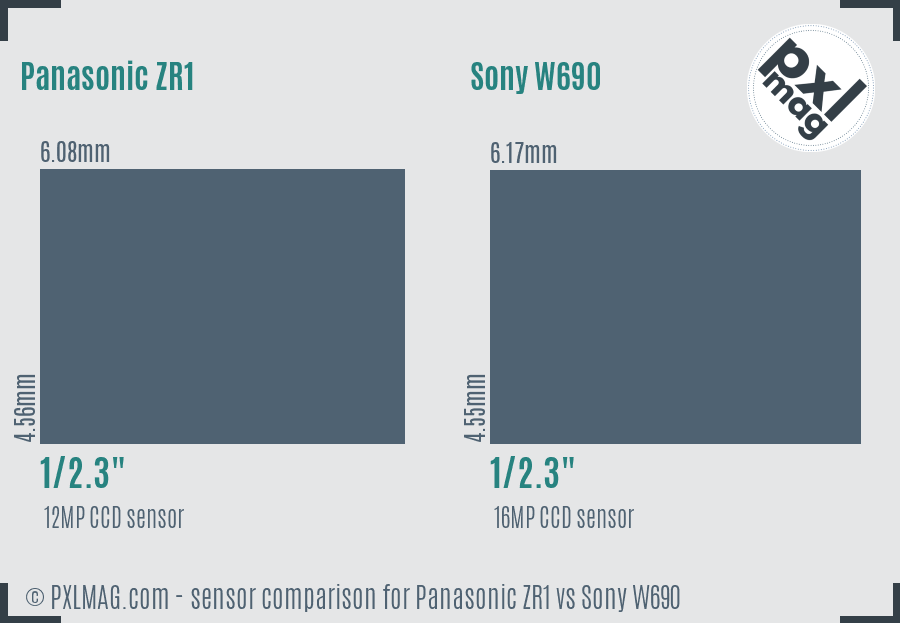

Generally, it's tough to visualise the gap between sensor measurements just by reading specifications. The visual here will offer you a greater sense of the sensor sizes in the ZR1 and W690.
To sum up, both of the cameras posses the exact same sensor measurements but not the same MP. You can expect to see the Sony W690 to deliver greater detail having an extra 4 Megapixels. Greater resolution will also help you crop photos somewhat more aggressively. The older ZR1 is going to be disadvantaged when it comes to sensor innovation.

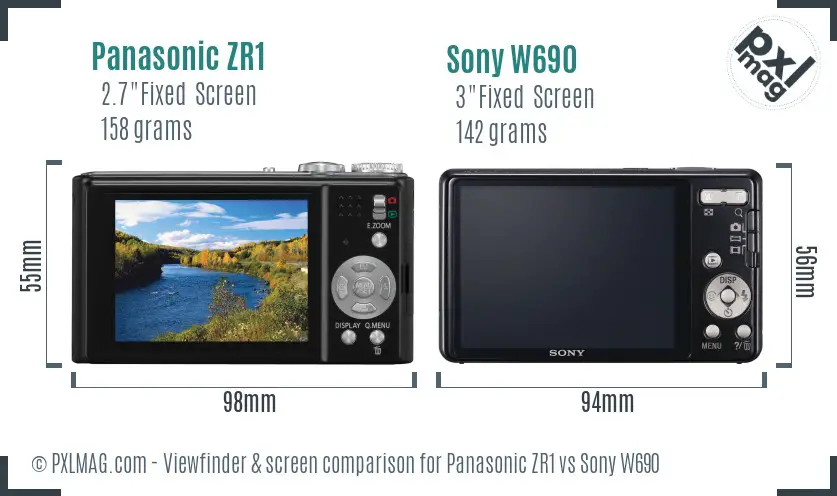

Panasonic ZR1 vs Sony W690 Screen and ViewFinder


Photography Type Scores
Portrait Comparison

Street Comparison

Sports Comparison

Travel Comparison

Landscape Comparison

Vlogging Comparison

Panasonic ZR1 vs Sony W690 Specifications
Panasonic Lumix DMC-ZR1 | Sony Cyber-shot DSC-W690 | |
---|---|---|
General Information | ||
Brand Name | Panasonic | Sony |
Model | Panasonic Lumix DMC-ZR1 | Sony Cyber-shot DSC-W690 |
Other name | Lumix DMC-ZX1 | - |
Type | Small Sensor Compact | Small Sensor Compact |
Released | 2009-07-27 | 2012-02-28 |
Physical type | Compact | Compact |
Sensor Information | ||
Processor Chip | Venus Engine V | BIONZ |
Sensor type | CCD | CCD |
Sensor size | 1/2.3" | 1/2.3" |
Sensor dimensions | 6.08 x 4.56mm | 6.17 x 4.55mm |
Sensor surface area | 27.7mm² | 28.1mm² |
Sensor resolution | 12 megapixels | 16 megapixels |
Anti aliasing filter | ||
Aspect ratio | 4:3, 3:2 and 16:9 | 4:3 and 16:9 |
Max resolution | 4000 x 3000 | 4608 x 3456 |
Max native ISO | 6400 | 3200 |
Min native ISO | 80 | 80 |
RAW files | ||
Autofocusing | ||
Focus manually | ||
Touch focus | ||
Autofocus continuous | ||
Autofocus single | ||
Autofocus tracking | ||
Selective autofocus | ||
Autofocus center weighted | ||
Multi area autofocus | ||
Autofocus live view | ||
Face detection autofocus | ||
Contract detection autofocus | ||
Phase detection autofocus | ||
Number of focus points | 11 | - |
Cross focus points | - | - |
Lens | ||
Lens mounting type | fixed lens | fixed lens |
Lens focal range | 25-200mm (8.0x) | 25-250mm (10.0x) |
Highest aperture | f/3.3-5.9 | f/3.3-5.9 |
Macro focus range | 3cm | 5cm |
Crop factor | 5.9 | 5.8 |
Screen | ||
Screen type | Fixed Type | Fixed Type |
Screen size | 2.7 inches | 3 inches |
Resolution of screen | 230 thousand dots | 230 thousand dots |
Selfie friendly | ||
Liveview | ||
Touch friendly | ||
Screen technology | - | ClearPhoto TFT LCD display |
Viewfinder Information | ||
Viewfinder | None | None |
Features | ||
Minimum shutter speed | 60 seconds | 30 seconds |
Fastest shutter speed | 1/2000 seconds | 1/1600 seconds |
Continuous shutter rate | 2.0 frames per sec | 1.0 frames per sec |
Shutter priority | ||
Aperture priority | ||
Manual mode | ||
Change white balance | ||
Image stabilization | ||
Integrated flash | ||
Flash range | 5.10 m | 3.30 m |
Flash modes | Auto, On, Off, Red-eye, Slow Sync | Auto, On, Off, Slow Sync |
External flash | ||
AEB | ||
White balance bracketing | ||
Exposure | ||
Multisegment exposure | ||
Average exposure | ||
Spot exposure | ||
Partial exposure | ||
AF area exposure | ||
Center weighted exposure | ||
Video features | ||
Video resolutions | 1280 x 720 (30 fps), 848 x 480 (30 fps), 640 x 480 (30 fps), 320 x 240 (30 fps) | 1280 x 720 (30 fps), 640 x 480 (30 fps) |
Max video resolution | 1280x720 | 1280x720 |
Video data format | Motion JPEG | MPEG-4 |
Mic port | ||
Headphone port | ||
Connectivity | ||
Wireless | None | None |
Bluetooth | ||
NFC | ||
HDMI | ||
USB | USB 2.0 (480 Mbit/sec) | USB 2.0 (480 Mbit/sec) |
GPS | None | None |
Physical | ||
Environment sealing | ||
Water proof | ||
Dust proof | ||
Shock proof | ||
Crush proof | ||
Freeze proof | ||
Weight | 158g (0.35 lbs) | 142g (0.31 lbs) |
Dimensions | 98 x 55 x 26mm (3.9" x 2.2" x 1.0") | 94 x 56 x 22mm (3.7" x 2.2" x 0.9") |
DXO scores | ||
DXO Overall score | not tested | not tested |
DXO Color Depth score | not tested | not tested |
DXO Dynamic range score | not tested | not tested |
DXO Low light score | not tested | not tested |
Other | ||
Battery life | - | 220 pictures |
Battery type | - | Battery Pack |
Battery model | - | NP-BN |
Self timer | Yes (2 or 10 sec) | Yes (2 or 10 sec, Portrait 1/2) |
Time lapse recording | ||
Type of storage | SD/SDHC card, Internal | SD/SDHC/SDXC/Memory Stick Duo/Memory Stick Pro Duo, Memory Stick Pro-HG Duo |
Card slots | 1 | 1 |
Cost at release | $280 | $297 |
