Pentax K-5 II vs Sigma DP2 Quattro
60 Imaging
57 Features
82 Overall
67


70 Imaging
62 Features
38 Overall
52
Pentax K-5 II vs Sigma DP2 Quattro Key Specs
(Full Review)
- 16MP - APS-C Sensor
- 3" Fixed Screen
- ISO 100 - 12800 (Expand to 51200)
- Sensor based Image Stabilization
- 1/8000s Max Shutter
- 1920 x 1080 video
- Pentax KAF2 Mount
- 760g - 131 x 97 x 73mm
- Launched June 2013
- Older Model is Pentax K-5
(Full Review)
- 20MP - APS-C Sensor
- 3" Fixed Display
- ISO 100 - 6400
- No Video
- 45mm (F2.8) lens
- 395g - 161 x 67 x 82mm
- Revealed February 2014

Pentax K-5 II vs Sigma DP2 Quattro Overview
Below is a comprehensive assessment of the Pentax K-5 II versus Sigma DP2 Quattro, one being a Advanced DSLR and the other is a Large Sensor Compact by competitors Pentax and Sigma. The image resolution of the K-5 II (16MP) and the DP2 Quattro (20MP) is fairly close and they use the same exact sensor sizing (APS-C).

The K-5 II was launched 8 months before the DP2 Quattro so they are both of a similar generation. Both cameras offer different body type with the Pentax K-5 II being a Mid-size SLR camera and the Sigma DP2 Quattro being a Large Sensor Compact camera.
Before getting through a full comparison, below is a quick view of how the K-5 II matches up against the DP2 Quattro with regards to portability, imaging, features and an overall grade.

Pentax K-5 II vs Sigma DP2 Quattro Gallery
This is a sample of the gallery pictures for Pentax K-5 II and Sigma DP2 Quattro. The complete galleries are provided at Pentax K-5 II Gallery and Sigma DP2 Quattro Gallery.
Reasons to pick Pentax K-5 II over the Sigma DP2 Quattro
K-5 II | DP2 Quattro | |||
---|---|---|---|---|
Display resolution | 921k | ![]() | 920k | Sharper display (+1k dot) |
Reasons to pick Sigma DP2 Quattro over the Pentax K-5 II
DP2 Quattro | K-5 II | |||
---|---|---|---|---|
Revealed | February 2014 | ![]() | June 2013 | More recent by 8 months |
Common features in the Pentax K-5 II and Sigma DP2 Quattro
K-5 II | DP2 Quattro | |||
---|---|---|---|---|
Manual focus | ![]() | Dial exact focusing | ||
Display type | Fixed | ![]() | Fixed | Fixed display |
Display sizing | 3" | ![]() | 3" | Equivalent display measurement |
Selfie screen | ![]() | Neither offers selfie screen | ||
Touch display | ![]() | Neither offers Touch display |

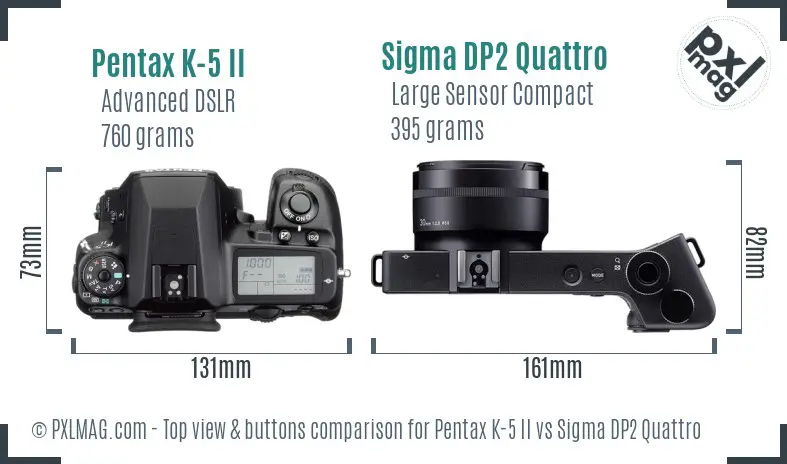

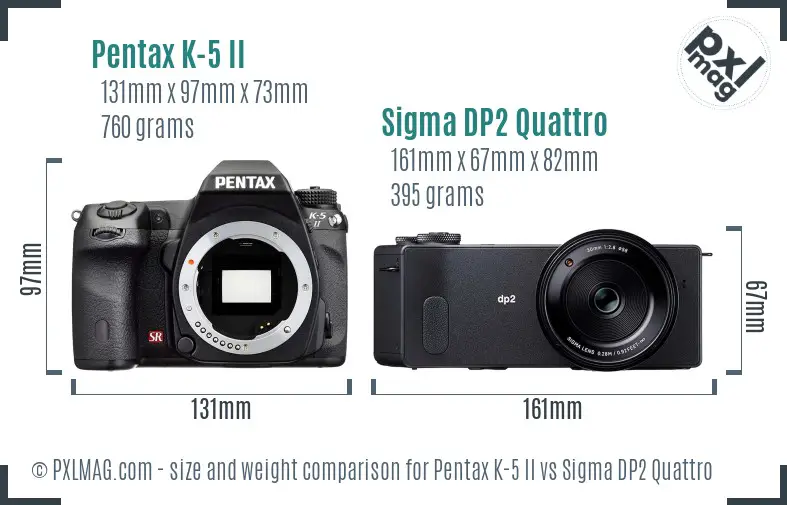

Pentax K-5 II vs Sigma DP2 Quattro Physical Comparison
For those who are looking to lug around your camera, you need to factor in its weight and size. The Pentax K-5 II offers external measurements of 131mm x 97mm x 73mm (5.2" x 3.8" x 2.9") and a weight of 760 grams (1.68 lbs) whilst the Sigma DP2 Quattro has specifications of 161mm x 67mm x 82mm (6.3" x 2.6" x 3.2") with a weight of 395 grams (0.87 lbs).
Analyze the Pentax K-5 II versus Sigma DP2 Quattro in the new Camera with Lens Size Comparison Tool.
Take into account, the weight of an Interchangeable Lens Camera will change dependant on the lens you have attached at that time. The following is the front view dimensions comparison of the K-5 II vs the DP2 Quattro.

Taking into account dimensions and weight, the portability grade of the K-5 II and DP2 Quattro is 60 and 70 respectively.

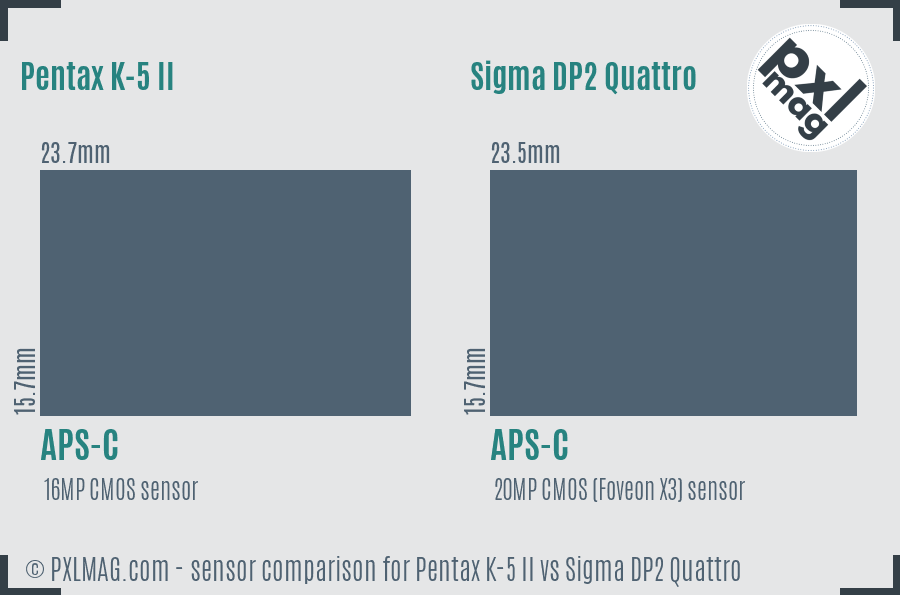

Pentax K-5 II vs Sigma DP2 Quattro Sensor Comparison
More often than not, it is difficult to imagine the gap in sensor measurements just by researching specifications. The visual underneath will help provide you a far better sense of the sensor measurements in the K-5 II and DP2 Quattro.
To sum up, both of these cameras enjoy the same exact sensor sizing but different resolution. You should anticipate the Sigma DP2 Quattro to result in more detail utilizing its extra 4 Megapixels. Greater resolution can also enable you to crop images far more aggressively. The older K-5 II will be behind with regard to sensor innovation.

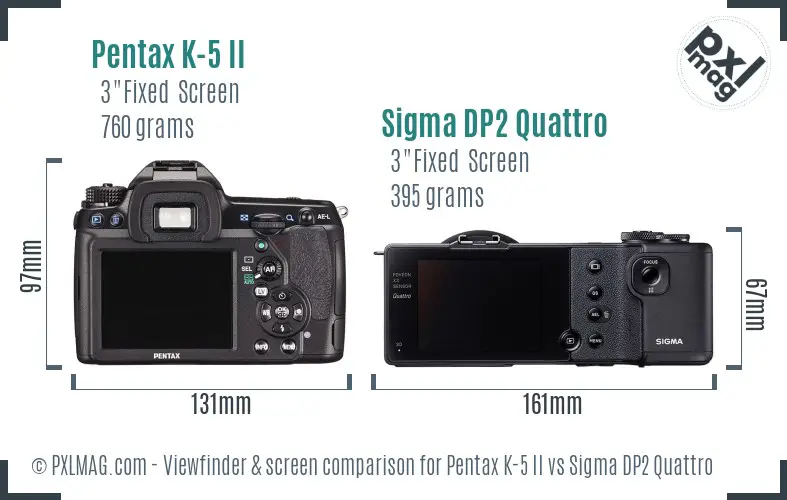

Pentax K-5 II vs Sigma DP2 Quattro Screen and ViewFinder


Photography Type Scores
Portrait Comparison

Street Comparison

Sports Comparison

Travel Comparison

Landscape Comparison

Vlogging Comparison

Pentax K-5 II vs Sigma DP2 Quattro Specifications
Pentax K-5 II | Sigma DP2 Quattro | |
---|---|---|
General Information | ||
Brand | Pentax | Sigma |
Model type | Pentax K-5 II | Sigma DP2 Quattro |
Class | Advanced DSLR | Large Sensor Compact |
Launched | 2013-06-04 | 2014-02-13 |
Body design | Mid-size SLR | Large Sensor Compact |
Sensor Information | ||
Chip | Prime II | TRUE III engine |
Sensor type | CMOS | CMOS (Foveon X3) |
Sensor size | APS-C | APS-C |
Sensor dimensions | 23.7 x 15.7mm | 23.5 x 15.7mm |
Sensor area | 372.1mm² | 369.0mm² |
Sensor resolution | 16MP | 20MP |
Anti alias filter | ||
Aspect ratio | 3:2 | 1:1, 4:3, 3:2 and 16:9 |
Maximum resolution | 4928 x 3264 | 5424 x 3616 |
Maximum native ISO | 12800 | 6400 |
Maximum boosted ISO | 51200 | - |
Lowest native ISO | 100 | 100 |
RAW support | ||
Lowest boosted ISO | 80 | - |
Autofocusing | ||
Manual focusing | ||
Touch focus | ||
Autofocus continuous | ||
Single autofocus | ||
Tracking autofocus | ||
Selective autofocus | ||
Center weighted autofocus | ||
Multi area autofocus | ||
Autofocus live view | ||
Face detection focus | ||
Contract detection focus | ||
Phase detection focus | ||
Total focus points | 11 | 9 |
Cross type focus points | 9 | - |
Lens | ||
Lens support | Pentax KAF2 | fixed lens |
Lens zoom range | - | 45mm (1x) |
Maximal aperture | - | f/2.8 |
Amount of lenses | 151 | - |
Crop factor | 1.5 | 1.5 |
Screen | ||
Range of screen | Fixed Type | Fixed Type |
Screen sizing | 3 inches | 3 inches |
Resolution of screen | 921 thousand dot | 920 thousand dot |
Selfie friendly | ||
Liveview | ||
Touch operation | ||
Screen technology | TFT LCD monitor | TFT color LCD |
Viewfinder Information | ||
Viewfinder | Optical (pentaprism) | None |
Viewfinder coverage | 100% | - |
Viewfinder magnification | 0.61x | - |
Features | ||
Slowest shutter speed | 30s | 30s |
Maximum shutter speed | 1/8000s | 1/2000s |
Continuous shooting speed | 7.0 frames/s | 3.0 frames/s |
Shutter priority | ||
Aperture priority | ||
Manual exposure | ||
Exposure compensation | Yes | Yes |
Change white balance | ||
Image stabilization | ||
Inbuilt flash | ||
Flash distance | 13.00 m (at ISO 100) | no built-in flash |
Flash settings | Auto, On, Off, Red-eye, Slow sync, High speed, Rear curtain and Wireless | no built-in flash |
Hot shoe | ||
Auto exposure bracketing | ||
WB bracketing | ||
Exposure | ||
Multisegment metering | ||
Average metering | ||
Spot metering | ||
Partial metering | ||
AF area metering | ||
Center weighted metering | ||
Video features | ||
Supported video resolutions | 1920 x 1080 (25 fps), 1280 x 720 (25, 30 fps), 640 x 480 (25, 30 fps) | - |
Maximum video resolution | 1920x1080 | None |
Video file format | Motion JPEG | - |
Mic jack | ||
Headphone jack | ||
Connectivity | ||
Wireless | None | None |
Bluetooth | ||
NFC | ||
HDMI | ||
USB | USB 2.0 (480 Mbit/sec) | USB 2.0 (480 Mbit/sec) |
GPS | Optional | None |
Physical | ||
Environment seal | ||
Water proofing | ||
Dust proofing | ||
Shock proofing | ||
Crush proofing | ||
Freeze proofing | ||
Weight | 760 grams (1.68 lb) | 395 grams (0.87 lb) |
Dimensions | 131 x 97 x 73mm (5.2" x 3.8" x 2.9") | 161 x 67 x 82mm (6.3" x 2.6" x 3.2") |
DXO scores | ||
DXO All around rating | 82 | not tested |
DXO Color Depth rating | 23.8 | not tested |
DXO Dynamic range rating | 14.1 | not tested |
DXO Low light rating | 1235 | not tested |
Other | ||
Battery life | 980 photos | - |
Battery form | Battery Pack | - |
Battery ID | D-LI90 | BP-51 |
Self timer | Yes ( 2 or 12 seconds) | Yes (2 or 10 secs) |
Time lapse shooting | ||
Storage media | SD/SDHC/SDXC | - |
Storage slots | 1 | 1 |
Cost at launch | $830 | $931 |
