Pentax K-5 II vs Sony A6400

Portability
60
Imaging
57
Features
82
Overall
67
Pentax K-5 II front

Sony Alpha a6400 front
Portability
83
Imaging
68
Features
88
Overall
76

Pentax K-5 II vs Sony A6400 Key Specs

Pentax K-5 II
(Full Review)
  • 16MP - APS-C Sensor
  • 3" Fixed Display
  • ISO 100 - 12800 (Push to 51200)
  • Sensor based Image Stabilization
  • 1/8000s Max Shutter
  • 1920 x 1080 video
  • Pentax KAF2 Mount
  • 760g - 131 x 97 x 73mm
  • Revealed June 2013
  • Old Model is Pentax K-5
Sony A6400
(Full Review)
  • 24MP - APS-C Sensor
  • 3" Tilting Screen
  • ISO 100 - 32000 (Boost to 102400)
  • 3840 x 2160 video
  • Sony E Mount
  • 403g - 120 x 67 x 50mm
  • Announced January 2019
Photobucket discusses licensing 13 billion images with AI firms

Pentax K-5 II vs Sony A6400 Overview

Its time to examine more in depth at the Pentax K-5 II vs Sony A6400, former being a Advanced DSLR while the latter is a Advanced Mirrorless by rivals Pentax and Sony. There is a sizable difference among the sensor resolutions of the K-5 II (16MP) and A6400 (24MP) but they use the exact same sensor size (APS-C).

Snapchat Adds Watermarks to AI-Created Images

The K-5 II was released 6 years prior to the A6400 and that is a fairly significant difference as far as camera tech is concerned. Each of these cameras come with different body type with the Pentax K-5 II being a Mid-size SLR camera and the Sony A6400 being a Rangefinder-style mirrorless camera.

Before delving straight into a thorough comparison, below is a concise summation of how the K-5 II scores vs the A6400 in terms of portability, imaging, features and an overall rating.

Samsung Releases Faster Versions of EVO MicroSD Cards



Reasons to pick Pentax K-5 II over the Sony A6400

 K-5 II A6400

Reasons to pick Sony A6400 over the Pentax K-5 II

 A6400 K-5 II
AnnouncedJanuary 2019June 2013Fresher by 68 months
Screen typeTiltingFixed Tilting screen
Screen resolution922k921kCrisper screen (+1k dot)
Selfie screen Easy selfies
Touch screen Quickly navigate

Common features in the Pentax K-5 II and Sony A6400

 K-5 II A6400
Manual focus Very precise focusing
Screen dimension3"3"Identical screen size

Pentax K-5 II vs Sony A6400 Physical Comparison

If you're looking to carry your camera, you will want to factor its weight and dimensions. The Pentax K-5 II offers exterior measurements of 131mm x 97mm x 73mm (5.2" x 3.8" x 2.9") having a weight of 760 grams (1.68 lbs) and the Sony A6400 has dimensions of 120mm x 67mm x 50mm (4.7" x 2.6" x 2.0") with a weight of 403 grams (0.89 lbs).

Compare the Pentax K-5 II vs Sony A6400 in our completely new Camera plus Lens Size Comparison Tool. Camera Size Comparison with Lenses

Always remember, the weight of an ILC will change dependant on the lens you are using at that time. Following is the front view measurement comparison of the K-5 II compared to the A6400.

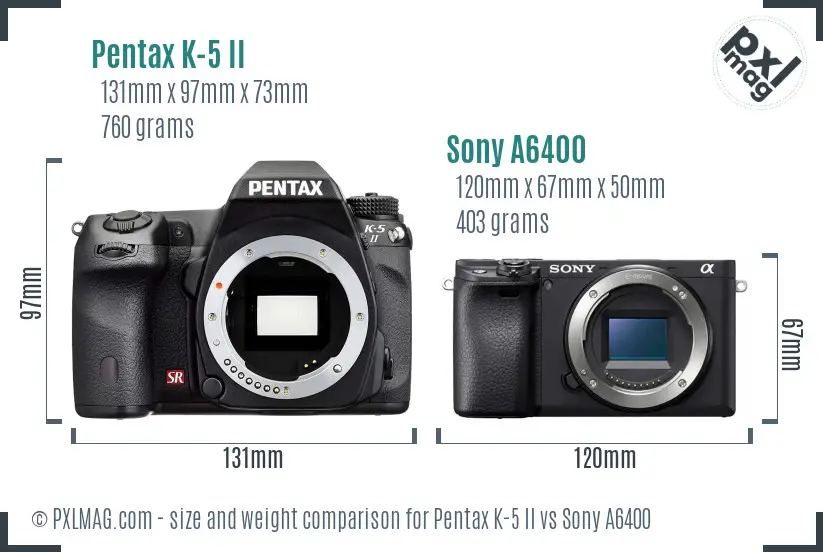

Pentax K-5 II vs Sony A6400 size comparison

Looking at size and weight, the portability score of the K-5 II and A6400 is 60 and 83 respectively.

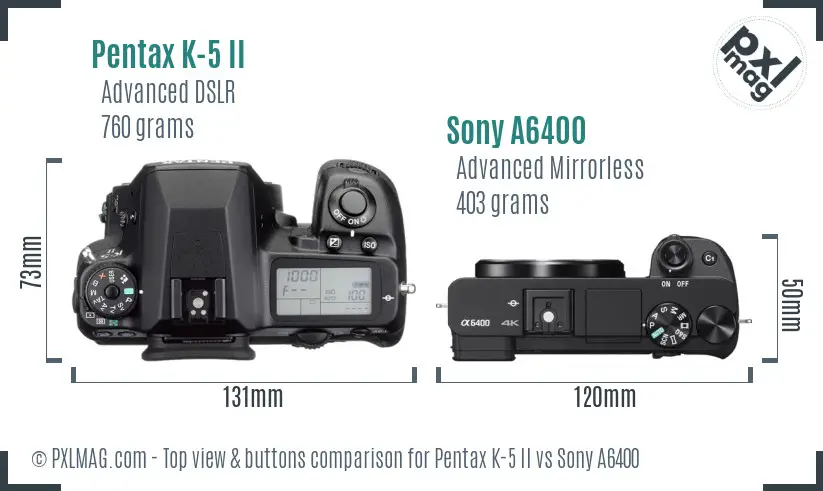

Pentax K-5 II vs Sony A6400 top view buttons comparison

Pentax K-5 II vs Sony A6400 Sensor Comparison

Often, its hard to imagine the difference in sensor sizing only by seeing specifications. The graphic underneath may offer you a more clear sense of the sensor measurements in the K-5 II and A6400.

Plainly, both of the cameras have got the exact same sensor measurements albeit different MP. You can expect the Sony A6400 to provide greater detail as a result of its extra 8MP. Higher resolution can also make it easier to crop photographs much more aggressively. The older K-5 II will be disadvantaged when it comes to sensor innovation.

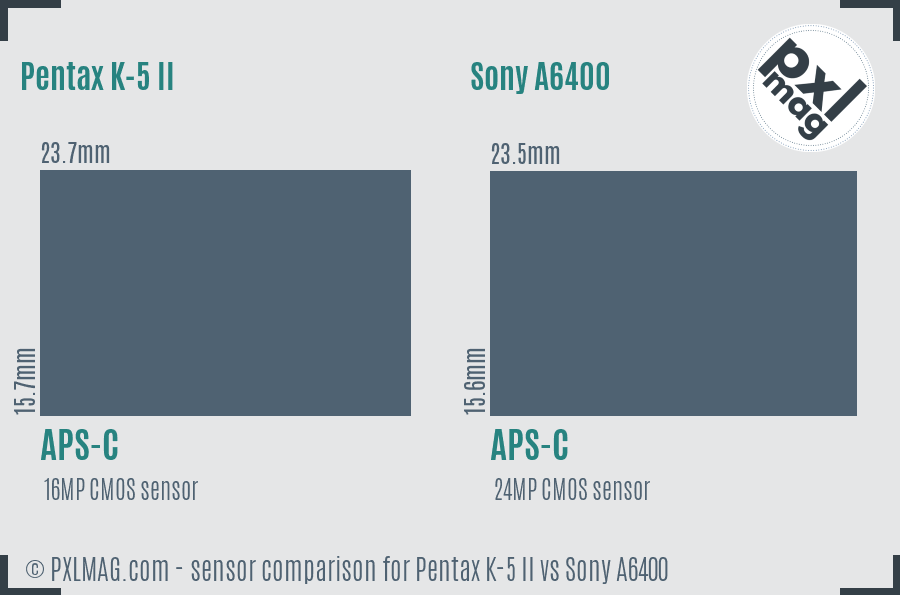

Pentax K-5 II vs Sony A6400 sensor size comparison

Pentax K-5 II vs Sony A6400 Screen and ViewFinder

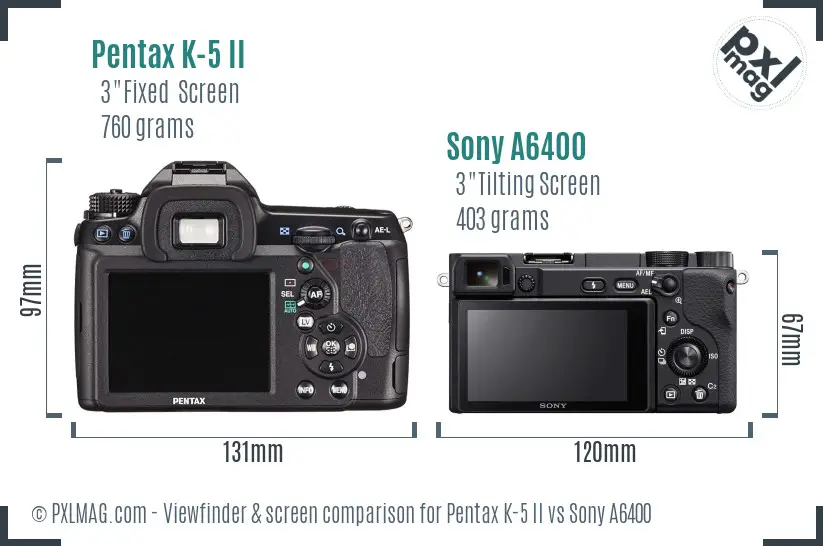

Pentax K-5 II vs Sony A6400 Screen and Viewfinder comparison
President Biden pushes bill mandating TikTok sale or ban

Photography Type Scores

Portrait Comparison

Portrait photography with Pentax K-5 II
Portrait photography with Sony A6400
74
has manual focus
MP count decent (16 megapixels)
decent sensor size (APS-C)
comes with face detection focusing
supports RAW formats
80
focusing manually
good resolution (24MP)
good sensor size (APS-C)
has face detect focus
delivers RAW files
Japan-exclusive Leica Leitz Phone 3 features big sensor and new modes

Street Comparison

Pentax K-5 II Street photography info
Sony A6400 Street photography info
66
built in image stabilization (Sensor based)
decent sensor size (APS-C)
supports RAW formats
environment sealing
fixed screen
81
has a tilting screen
good sensor size (APS-C)
delivers RAW files
supports touch focus
weather proofing
above average high ISO (32,000)
lack of image stabilization
Photography Glossary

Sports Comparison

Pentax K-5 II as a Sports photography camera
Sony A6400 as a Sports photography camera
78
great max shutter speed (1/8,000s)
built in image stabilization (Sensor based)
MP count decent (16 megapixels)
decent sensor size (APS-C)
comes with tracking autofocus
environment sealing
sensor has phase detect AF
75
good resolution (24 megapixels)
good sensor size (APS-C)
has tracking focus
weather proofing
supports phase detect auto focus
lack of image stabilization
Pentax 17 Pre-Orders Outperform Expectations by a Landslide

Travel Comparison

Pentax K-5 II Travel photography information
Sony A6400 Travel photography information
65
environment sealing
MP count decent (16 megapixels)
built-in flash
does not posses selfie friendly screen
86
weather proofing
has bluetooth
supports touch focus
good resolution (24MP)
has built in flash
screen is selfie friendly
Meta to Introduce 'AI-Generated' Labels for Media starting next month

Landscape Comparison

Landscape photography with Pentax K-5 II
Landscape photography with Sony A6400
78
has manual focus
swap lenses (Pentax KAF2 mount)
nice screen size (3")
built in image stabilization (Sensor based)
MP count decent (16MP)
decent sensor size (APS-C)
supports RAW formats
environment sealing
79
focusing manually
switch lenses (Sony E mount)
screen size is good (3 inch)
good resolution (24 megapixels)
good sensor size (APS-C)
above average high ISO (32,000)
delivers RAW files
weather proofing
lack of image stabilization
Sora from OpenAI releases its first ever music video

Vlogging Comparison

Pentax K-5 II as a Vlogging camera
Sony A6400 as a Vlogging camera
33
built in image stabilization (Sensor based)
comes with face detection focusing
high res video (1920 x 1080 resolution)
includes external microphone support
does not posses selfie friendly screen
80
screen is selfie friendly
touch screen
has face detect focus
video resolution high (3840 x 2160 pixels)
comes with microphone socket
lack of image stabilization
Apple Innovates by Creating Next-Level Optical Stabilization for iPhone

Pentax K-5 II vs Sony A6400 Specifications

Detailed spec comparison table for Pentax K-5 II and Sony A6400
 Pentax K-5 IISony Alpha a6400
General Information
Brand Pentax Sony
Model Pentax K-5 II Sony Alpha a6400
Class Advanced DSLR Advanced Mirrorless
Revealed 2013-06-04 2019-01-15
Physical type Mid-size SLR Rangefinder-style mirrorless
Sensor Information
Processor Chip Prime II Bionz X
Sensor type CMOS CMOS
Sensor size APS-C APS-C
Sensor measurements 23.7 x 15.7mm 23.5 x 15.6mm
Sensor area 372.1mm² 366.6mm²
Sensor resolution 16MP 24MP
Anti aliasing filter
Aspect ratio 3:2 1:1, 3:2 and 16:9
Max resolution 4928 x 3264 6000 x 4000
Max native ISO 12800 32000
Max enhanced ISO 51200 102400
Minimum native ISO 100 100
RAW format
Minimum enhanced ISO 80 -
Autofocusing
Manual focus
Touch focus
AF continuous
Single AF
Tracking AF
Selective AF
AF center weighted
Multi area AF
AF live view
Face detect focusing
Contract detect focusing
Phase detect focusing
Number of focus points 11 425
Cross focus points 9 -
Lens
Lens mounting type Pentax KAF2 Sony E
Total lenses 151 121
Crop factor 1.5 1.5
Screen
Type of display Fixed Type Tilting
Display diagonal 3" 3"
Resolution of display 921 thousand dots 922 thousand dots
Selfie friendly
Liveview
Touch screen
Display tech TFT LCD monitor -
Viewfinder Information
Viewfinder Optical (pentaprism) Electronic
Viewfinder resolution - 2,359 thousand dots
Viewfinder coverage 100% 100%
Viewfinder magnification 0.61x 0.7x
Features
Minimum shutter speed 30 secs 30 secs
Fastest shutter speed 1/8000 secs 1/4000 secs
Continuous shutter rate 7.0fps 11.0fps
Shutter priority
Aperture priority
Manual mode
Exposure compensation Yes Yes
Set WB
Image stabilization
Inbuilt flash
Flash range 13.00 m (at ISO 100) 6.00 m (at ISO 100)
Flash options Auto, On, Off, Red-eye, Slow sync, High speed, Rear curtain and Wireless Off, auto, on, slow sync, rear sync, redeye reduction, wireless, hi-speed sync
Hot shoe
Auto exposure bracketing
WB bracketing
Exposure
Multisegment metering
Average metering
Spot metering
Partial metering
AF area metering
Center weighted metering
Video features
Supported video resolutions 1920 x 1080 (25 fps), 1280 x 720 (25, 30 fps), 640 x 480 (25, 30 fps) 3840 x 2160 @ 30p / 100 Mbps, XAVC S, MP4, H.264, Linear PCM
Max video resolution 1920x1080 3840x2160
Video data format Motion JPEG MPEG-4, H.264, XAVC-S
Microphone port
Headphone port
Connectivity
Wireless None Built-In
Bluetooth
NFC
HDMI
USB USB 2.0 (480 Mbit/sec) USB 2.0 (480 Mbit/sec)
GPS Optional None
Physical
Environment sealing
Water proof
Dust proof
Shock proof
Crush proof
Freeze proof
Weight 760g (1.68 lbs) 403g (0.89 lbs)
Dimensions 131 x 97 x 73mm (5.2" x 3.8" x 2.9") 120 x 67 x 50mm (4.7" x 2.6" x 2.0")
DXO scores
DXO Overall score 82 83
DXO Color Depth score 23.8 24.0
DXO Dynamic range score 14.1 13.6
DXO Low light score 1235 1431
Other
Battery life 980 shots 410 shots
Battery type Battery Pack Battery Pack
Battery model D-LI90 NP-FW50
Self timer Yes ( 2 or 12 seconds) Yes
Time lapse shooting
Storage type SD/SDHC/SDXC SD/SDHC/SDXC/Memory Stick DUO (UHS-I compliant)
Card slots Single Single
Retail price $830 $898
