Sigma DP2 Merrill vs Sony WX30
83 Imaging
55 Features
33 Overall
46


96 Imaging
39 Features
41 Overall
39
Sigma DP2 Merrill vs Sony WX30 Key Specs
(Full Review)
- 15MP - APS-C Sensor
- 3" Fixed Screen
- ISO 100 - 6400
- 640 x 480 video
- 50mm (F2.8) lens
- 330g - 122 x 67 x 59mm
- Released February 2012
- Old Model is Sigma DP1 Merrill
- Successor is Sigma DP3 Merrill
(Full Review)
- 16MP - 1/2.3" Sensor
- 3" Fixed Display
- ISO 100 - 3200
- Optical Image Stabilization
- 1920 x 1080 video
- 25-125mm (F2.6-6.3) lens
- 117g - 92 x 52 x 19mm
- Announced July 2011

Sigma DP2 Merrill vs Sony WX30 Overview
Let's look a little more in depth at the Sigma DP2 Merrill versus Sony WX30, one is a Large Sensor Compact and the other is a Small Sensor Compact by rivals Sigma and Sony. The resolution of the DP2 Merrill (15MP) and the WX30 (16MP) is fairly close but the DP2 Merrill (APS-C) and WX30 (1/2.3") offer totally different sensor sizing.

The DP2 Merrill was launched 7 months after the WX30 so they are of a similar generation. Both cameras have different body design with the Sigma DP2 Merrill being a Large Sensor Compact camera and the Sony WX30 being a Compact camera.
Before getting into a detailed comparison, here is a short highlight of how the DP2 Merrill grades vs the WX30 in relation to portability, imaging, features and an overall score.

Sigma DP2 Merrill vs Sony WX30 Gallery
The following is a sample of the gallery pictures for Sigma DP2 Merrill and Sony Cyber-shot DSC-WX30. The complete galleries are provided at Sigma DP2 Merrill Gallery and Sony WX30 Gallery.
Reasons to pick Sigma DP2 Merrill over the Sony WX30
DP2 Merrill | WX30 | |||
---|---|---|---|---|
Announced | February 2012 | ![]() | July 2011 | More modern by 7 months |
Focus manually | ![]() | Very accurate focusing |
Reasons to pick Sony WX30 over the Sigma DP2 Merrill
WX30 | DP2 Merrill | |||
---|---|---|---|---|
Display resolution | 922k | ![]() | 920k | Crisper display (+2k dot) |
Touch display | ![]() | Easily navigate |
Common features in the Sigma DP2 Merrill and Sony WX30
DP2 Merrill | WX30 | |||
---|---|---|---|---|
Display type | Fixed | ![]() | Fixed | Fixed display |
Display dimensions | 3" | ![]() | 3" | Equal display measurement |
Selfie screen | ![]() | Lacking selfie screen |
Sigma DP2 Merrill vs Sony WX30 Physical Comparison
In case you're intending to carry around your camera regularly, you have to consider its weight and measurements. The Sigma DP2 Merrill enjoys outer measurements of 122mm x 67mm x 59mm (4.8" x 2.6" x 2.3") accompanied by a weight of 330 grams (0.73 lbs) while the Sony WX30 has proportions of 92mm x 52mm x 19mm (3.6" x 2.0" x 0.7") and a weight of 117 grams (0.26 lbs).
Examine the Sigma DP2 Merrill versus Sony WX30 in the latest Camera and Lens Size Comparison Tool.

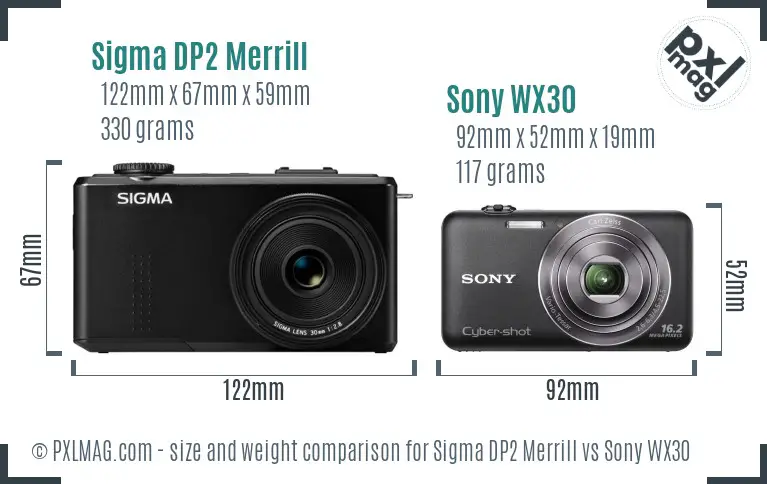

Remember, the weight of an Interchangeable Lens Camera will change depending on the lens you have at that time. Underneath is a front view over all size comparison of the DP2 Merrill and the WX30.

Taking into consideration size and weight, the portability rating of the DP2 Merrill and WX30 is 83 and 96 respectively.

Sigma DP2 Merrill vs Sony WX30 Sensor Comparison

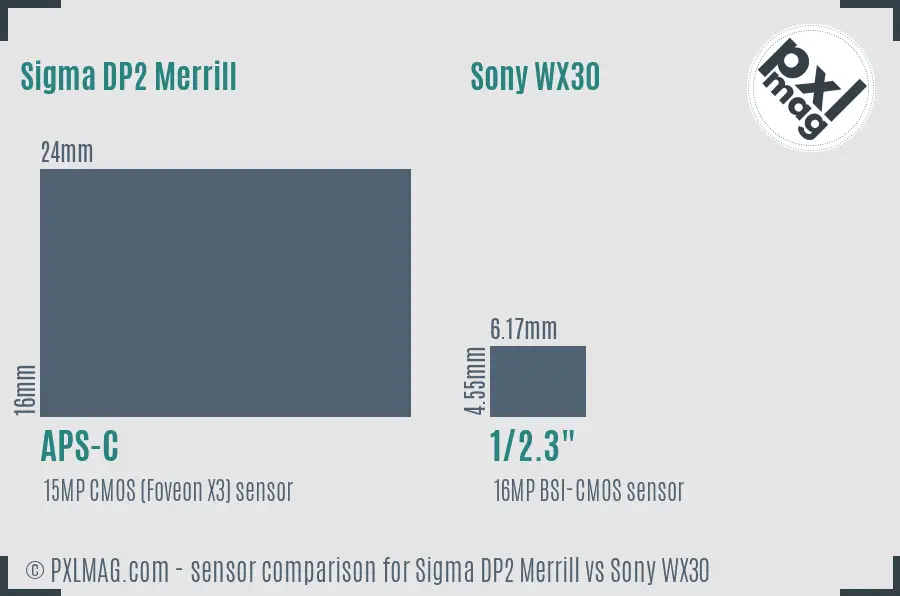

Oftentimes, it's difficult to envision the difference in sensor sizes purely by looking through technical specs. The pic underneath will help offer you a more clear sense of the sensor sizing in the DP2 Merrill and WX30.
As you have seen, each of these cameras provide different megapixel count and different sensor sizes. The DP2 Merrill featuring a larger sensor will make getting shallower DOF simpler and the Sony WX30 will result in more detail utilizing its extra 1MP. Greater resolution will also help you crop photos more aggressively. The more recent DP2 Merrill will have an advantage with regard to sensor tech.

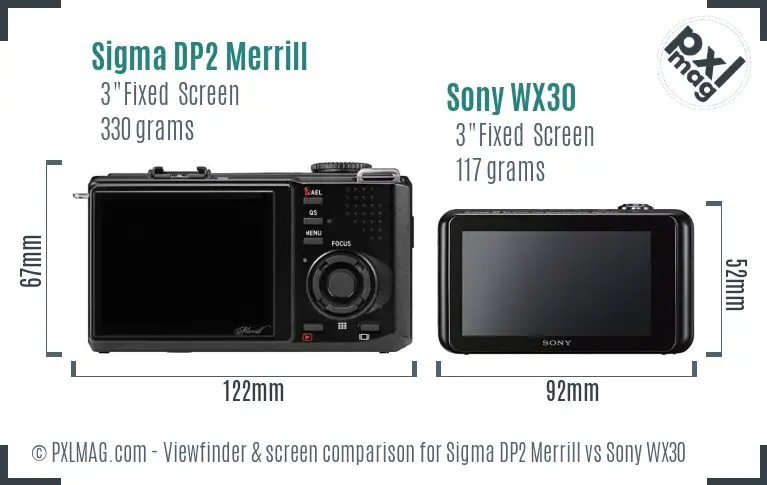

Sigma DP2 Merrill vs Sony WX30 Screen and ViewFinder


Photography Type Scores
Portrait Comparison

Street Comparison

Sports Comparison

Travel Comparison

Landscape Comparison

Vlogging Comparison

Sigma DP2 Merrill vs Sony WX30 Specifications
Sigma DP2 Merrill | Sony Cyber-shot DSC-WX30 | |
---|---|---|
General Information | ||
Brand | Sigma | Sony |
Model | Sigma DP2 Merrill | Sony Cyber-shot DSC-WX30 |
Type | Large Sensor Compact | Small Sensor Compact |
Released | 2012-02-08 | 2011-07-25 |
Physical type | Large Sensor Compact | Compact |
Sensor Information | ||
Processor | Dual TRUE II engine | BIONZ |
Sensor type | CMOS (Foveon X3) | BSI-CMOS |
Sensor size | APS-C | 1/2.3" |
Sensor dimensions | 24 x 16mm | 6.17 x 4.55mm |
Sensor area | 384.0mm² | 28.1mm² |
Sensor resolution | 15 megapixel | 16 megapixel |
Anti aliasing filter | ||
Aspect ratio | - | 4:3 and 16:9 |
Highest resolution | 4704 x 3136 | 4608 x 3456 |
Highest native ISO | 6400 | 3200 |
Min native ISO | 100 | 100 |
RAW files | ||
Autofocusing | ||
Manual focus | ||
Autofocus touch | ||
Continuous autofocus | ||
Autofocus single | ||
Tracking autofocus | ||
Autofocus selectice | ||
Autofocus center weighted | ||
Autofocus multi area | ||
Live view autofocus | ||
Face detection focus | ||
Contract detection focus | ||
Phase detection focus | ||
Number of focus points | - | 9 |
Lens | ||
Lens mounting type | fixed lens | fixed lens |
Lens focal range | 50mm (1x) | 25-125mm (5.0x) |
Max aperture | f/2.8 | f/2.6-6.3 |
Macro focus range | - | 5cm |
Focal length multiplier | 1.5 | 5.8 |
Screen | ||
Type of screen | Fixed Type | Fixed Type |
Screen size | 3 inch | 3 inch |
Screen resolution | 920 thousand dots | 922 thousand dots |
Selfie friendly | ||
Liveview | ||
Touch display | ||
Screen technology | - | XtraFine TFT LCD display |
Viewfinder Information | ||
Viewfinder type | None | None |
Features | ||
Slowest shutter speed | - | 30 seconds |
Maximum shutter speed | - | 1/1600 seconds |
Continuous shooting rate | 4.0fps | 10.0fps |
Shutter priority | ||
Aperture priority | ||
Manual mode | ||
Exposure compensation | Yes | - |
Custom white balance | ||
Image stabilization | ||
Built-in flash | ||
Flash range | no built-in flash | 3.70 m |
Flash options | no built-in flash | Auto, On, Off, Slow Sync |
Hot shoe | ||
AEB | ||
WB bracketing | ||
Exposure | ||
Multisegment exposure | ||
Average exposure | ||
Spot exposure | ||
Partial exposure | ||
AF area exposure | ||
Center weighted exposure | ||
Video features | ||
Video resolutions | 640x480 | 1920 x 1080 (60fps), 1440 x 1080 (30fps), 1280 x 720 (30fps), 640 x 480 (30fps) |
Highest video resolution | 640x480 | 1920x1080 |
Video data format | Motion JPEG | MPEG-4, AVCHD |
Mic port | ||
Headphone port | ||
Connectivity | ||
Wireless | None | None |
Bluetooth | ||
NFC | ||
HDMI | ||
USB | USB 2.0 (480 Mbit/sec) | USB 2.0 (480 Mbit/sec) |
GPS | None | None |
Physical | ||
Environmental sealing | ||
Water proof | ||
Dust proof | ||
Shock proof | ||
Crush proof | ||
Freeze proof | ||
Weight | 330 gr (0.73 lb) | 117 gr (0.26 lb) |
Physical dimensions | 122 x 67 x 59mm (4.8" x 2.6" x 2.3") | 92 x 52 x 19mm (3.6" x 2.0" x 0.7") |
DXO scores | ||
DXO All around score | not tested | not tested |
DXO Color Depth score | not tested | not tested |
DXO Dynamic range score | not tested | not tested |
DXO Low light score | not tested | not tested |
Other | ||
Battery life | - | 250 shots |
Style of battery | - | Battery Pack |
Battery model | - | NP-BN1 |
Self timer | - | Yes (2 or 10 sec, Portrait 1/2) |
Time lapse shooting | ||
Type of storage | - | SD/SDHC/SDXC/Memory Stick Duo/Memory Stick Pro Duo, Memory Stick Pro-HG Duo |
Card slots | Single | Single |
Cost at launch | $931 | $259 |
