Sigma SD1 Merrill vs Sony W330
57 Imaging
56 Features
45 Overall
51


96 Imaging
36 Features
21 Overall
30
Sigma SD1 Merrill vs Sony W330 Key Specs
(Full Review)
- 15MP - APS-C Sensor
- 3" Fixed Screen
- ISO 100 - 6400
- No Video
- Sigma SA Mount
- 790g - 146 x 113 x 80mm
- Launched April 2012
- Succeeded the Sigma SD1
(Full Review)
- 14MP - 1/2.3" Sensor
- 3" Fixed Screen
- ISO 80 - 3200
- 640 x 480 video
- 26-105mm (F2.7-5.7) lens
- 128g - 96 x 57 x 17mm
- Launched January 2010

Sigma SD1 Merrill vs Sony W330 Overview
The following is a extended review of the Sigma SD1 Merrill vs Sony W330, one is a Advanced DSLR and the latter is a Ultracompact by competitors Sigma and Sony. The image resolution of the SD1 Merrill (15MP) and the W330 (14MP) is relatively close but the SD1 Merrill (APS-C) and W330 (1/2.3") come with totally different sensor sizing.

The SD1 Merrill was introduced 2 years after the W330 which is a fairly serious gap as far as camera technology is concerned. Both cameras come with different body type with the Sigma SD1 Merrill being a Mid-size SLR camera and the Sony W330 being a Ultracompact camera.
Before delving straight into a step-by-step comparison, below is a concise summation of how the SD1 Merrill scores against the W330 in terms of portability, imaging, features and an overall mark.

Sigma SD1 Merrill vs Sony W330 Gallery
Following is a preview of the gallery photos for Sigma SD1 Merrill and Sony Cyber-shot DSC-W330. The whole galleries are viewable at Sigma SD1 Merrill Gallery and Sony W330 Gallery.
Reasons to pick Sigma SD1 Merrill over the Sony W330
SD1 Merrill | W330 | |||
---|---|---|---|---|
Launched | April 2012 | ![]() | January 2010 | Newer by 28 months |
Manually focus | ![]() | More precise focus | ||
Screen resolution | 460k | ![]() | 230k | Sharper screen (+230k dot) |
Reasons to pick Sony W330 over the Sigma SD1 Merrill
W330 | SD1 Merrill |
---|
Common features in the Sigma SD1 Merrill and Sony W330
SD1 Merrill | W330 | |||
---|---|---|---|---|
Screen type | Fixed | ![]() | Fixed | Fixed screen |
Screen dimension | 3" | ![]() | 3" | Identical screen measurement |
Selfie screen | ![]() | Neither provides selfie screen | ||
Touch screen | ![]() | Neither provides Touch screen |
Sigma SD1 Merrill vs Sony W330 Physical Comparison
If you are aiming to travel with your camera, you will have to take into account its weight and measurements. The Sigma SD1 Merrill provides external dimensions of 146mm x 113mm x 80mm (5.7" x 4.4" x 3.1") and a weight of 790 grams (1.74 lbs) while the Sony W330 has proportions of 96mm x 57mm x 17mm (3.8" x 2.2" x 0.7") having a weight of 128 grams (0.28 lbs).
Analyze the Sigma SD1 Merrill vs Sony W330 in the new Camera and Lens Size Comparison Tool.

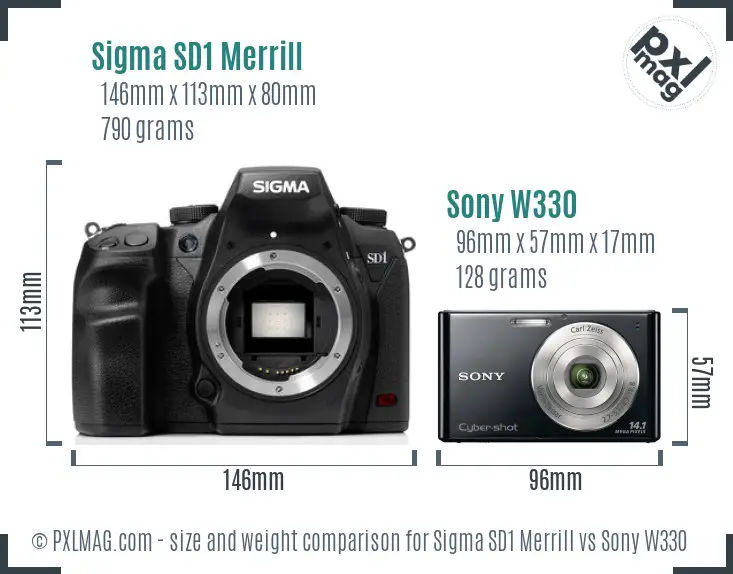

Remember that, the weight of an Interchangeable Lens Camera will change depending on the lens you are working with during that time. Following is the front view over all size comparison of the SD1 Merrill versus the W330.

Considering dimensions and weight, the portability score of the SD1 Merrill and W330 is 57 and 96 respectively.

Sigma SD1 Merrill vs Sony W330 Sensor Comparison

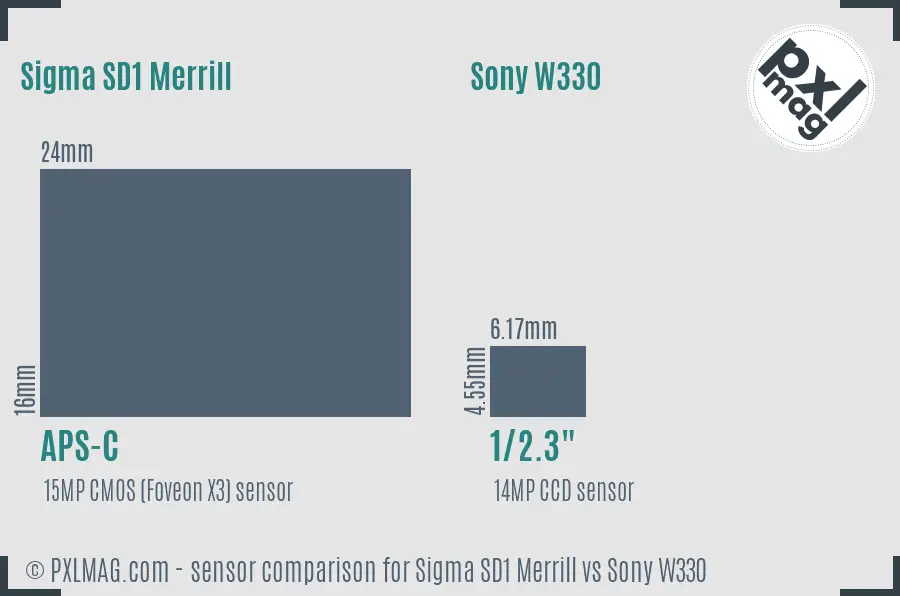

More often than not, it can be difficult to envision the contrast in sensor dimensions merely by viewing technical specs. The image below should offer you a greater sense of the sensor dimensions in the SD1 Merrill and W330.
As you have seen, both of the cameras have got different megapixel count and different sensor dimensions. The SD1 Merrill having a bigger sensor will make achieving shallower depth of field less difficult and the Sigma SD1 Merrill will result in extra detail using its extra 1 Megapixels. Higher resolution will also allow you to crop pictures much more aggressively. The newer SD1 Merrill will have an edge when it comes to sensor technology.

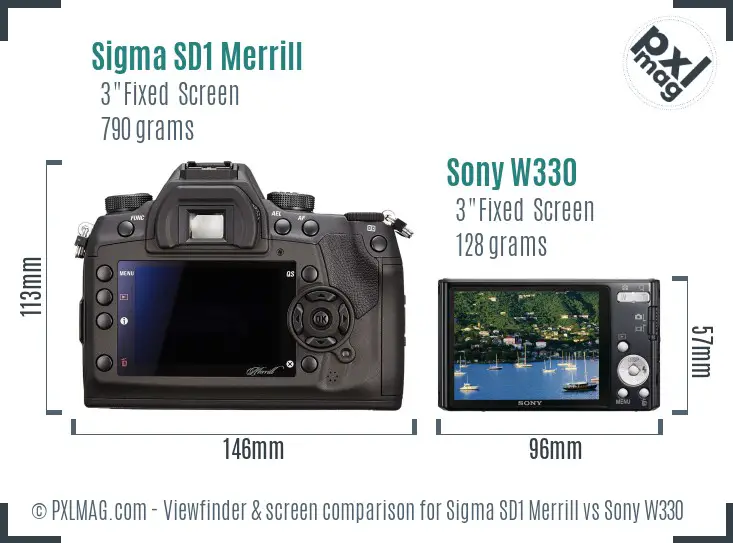

Sigma SD1 Merrill vs Sony W330 Screen and ViewFinder


Photography Type Scores
Portrait Comparison

Street Comparison

Sports Comparison

Travel Comparison

Landscape Comparison

Vlogging Comparison

Sigma SD1 Merrill vs Sony W330 Specifications
Sigma SD1 Merrill | Sony Cyber-shot DSC-W330 | |
---|---|---|
General Information | ||
Make | Sigma | Sony |
Model | Sigma SD1 Merrill | Sony Cyber-shot DSC-W330 |
Type | Advanced DSLR | Ultracompact |
Launched | 2012-04-10 | 2010-01-07 |
Physical type | Mid-size SLR | Ultracompact |
Sensor Information | ||
Processor | Dual True II | - |
Sensor type | CMOS (Foveon X3) | CCD |
Sensor size | APS-C | 1/2.3" |
Sensor dimensions | 24 x 16mm | 6.17 x 4.55mm |
Sensor area | 384.0mm² | 28.1mm² |
Sensor resolution | 15 megapixel | 14 megapixel |
Anti aliasing filter | ||
Aspect ratio | - | 4:3 and 16:9 |
Highest resolution | 4800 x 3200 | 4320 x 3240 |
Highest native ISO | 6400 | 3200 |
Lowest native ISO | 100 | 80 |
RAW support | ||
Autofocusing | ||
Manual focus | ||
Touch to focus | ||
Continuous AF | ||
Single AF | ||
AF tracking | ||
Selective AF | ||
Center weighted AF | ||
AF multi area | ||
AF live view | ||
Face detection focusing | ||
Contract detection focusing | ||
Phase detection focusing | ||
Number of focus points | - | 9 |
Lens | ||
Lens mount | Sigma SA | fixed lens |
Lens focal range | - | 26-105mm (4.0x) |
Maximum aperture | - | f/2.7-5.7 |
Macro focus range | - | 4cm |
Available lenses | 76 | - |
Focal length multiplier | 1.5 | 5.8 |
Screen | ||
Screen type | Fixed Type | Fixed Type |
Screen diagonal | 3 inch | 3 inch |
Resolution of screen | 460k dots | 230k dots |
Selfie friendly | ||
Liveview | ||
Touch screen | ||
Viewfinder Information | ||
Viewfinder type | Optical (pentaprism) | None |
Viewfinder coverage | 96 percent | - |
Viewfinder magnification | 0.64x | - |
Features | ||
Lowest shutter speed | - | 2 seconds |
Highest shutter speed | - | 1/1600 seconds |
Continuous shooting rate | - | 2.0 frames/s |
Shutter priority | ||
Aperture priority | ||
Manual mode | ||
Exposure compensation | Yes | - |
Change WB | ||
Image stabilization | ||
Inbuilt flash | ||
Flash range | no built-in flash | 3.50 m |
Flash settings | no built-in flash | Auto, On, Off, Slow syncro |
External flash | ||
AEB | ||
White balance bracketing | ||
Exposure | ||
Multisegment metering | ||
Average metering | ||
Spot metering | ||
Partial metering | ||
AF area metering | ||
Center weighted metering | ||
Video features | ||
Supported video resolutions | - | 640 x 480 (30 fps), 320 x 240 (30 fps) |
Highest video resolution | None | 640x480 |
Video data format | - | Motion JPEG |
Mic support | ||
Headphone support | ||
Connectivity | ||
Wireless | None | None |
Bluetooth | ||
NFC | ||
HDMI | ||
USB | USB 2.0 (480 Mbit/sec) | USB 2.0 (480 Mbit/sec) |
GPS | None | None |
Physical | ||
Environmental sealing | ||
Water proof | ||
Dust proof | ||
Shock proof | ||
Crush proof | ||
Freeze proof | ||
Weight | 790 grams (1.74 lb) | 128 grams (0.28 lb) |
Dimensions | 146 x 113 x 80mm (5.7" x 4.4" x 3.1") | 96 x 57 x 17mm (3.8" x 2.2" x 0.7") |
DXO scores | ||
DXO All around score | not tested | not tested |
DXO Color Depth score | not tested | not tested |
DXO Dynamic range score | not tested | not tested |
DXO Low light score | not tested | not tested |
Other | ||
Battery model | - | NP-BN1 |
Self timer | Yes | Yes (2 sec or 10 sec) |
Time lapse recording | ||
Storage type | Compact Flash (Type I, UDMA compatible) | SD/SDHC, Memory Stick Duo / Pro Duo / Pro HG-Duo, Internal |
Card slots | 1 | 1 |
Launch price | $2,339 | $170 |
