Canon M5 vs Olympus E-M10
77 Imaging
66 Features
84 Overall
73
82 Imaging
52 Features
73 Overall
60
Canon M5 vs Olympus E-M10 Key Specs
(Full Review)
- 24MP - APS-C Sensor
- 3.2" Tilting Display
- ISO 100 - 25600
- 1920 x 1080 video
- Canon EF-M Mount
- 427g - 116 x 89 x 61mm
- Released September 2016
(Full Review)
- 16MP - Four Thirds Sensor
- 3" Tilting Display
- ISO 200 - 25600
- Sensor based Image Stabilization
- 1920 x 1080 video
- Micro Four Thirds Mount
- 396g - 119 x 82 x 46mm
- Launched March 2014
- Replacement is Olympus E-M10 II
Meta to Introduce 'AI-Generated' Labels for Media starting next month Canon M5 vs Olympus E-M10 Overview
Lets take a deeper look at the Canon M5 vs Olympus E-M10, former being a Advanced Mirrorless while the other is a Entry-Level Mirrorless by companies Canon and Olympus. There is a sizable difference among the resolutions of the M5 (24MP) and E-M10 (16MP) and the M5 (APS-C) and E-M10 (Four Thirds) feature totally different sensor dimensions.
Photobucket discusses licensing 13 billion images with AI firmsThe M5 was announced 2 years later than the E-M10 and that is a fairly significant difference as far as camera tech is concerned. Both of these cameras offer the identical body type (SLR-style mirrorless).
Before diving straight into a in depth comparison, below is a brief summary of how the M5 matches up vs the E-M10 in the way of portability, imaging, features and an overall rating.
Snapchat Adds Watermarks to AI-Created Images Canon M5 vs Olympus E-M10 Gallery
Following is a sample of the gallery pics for Canon EOS M5 & Olympus OM-D E-M10. The whole galleries are provided at Canon M5 Gallery & Olympus E-M10 Gallery.
Reasons to pick Canon M5 over the Olympus E-M10
| M5 | E-M10 | |||
|---|---|---|---|---|
| Launched | September 2016 |  | March 2014 | Fresher by 31 months |
| Display sizing | 3.2" |  | 3" | Larger display (+0.2") |
| Display resolution | 1620k |  | 1037k | Sharper display (+583k dot) |
| Selfie screen |  | Easy selfies |
Reasons to pick Olympus E-M10 over the Canon M5
| E-M10 | M5 |
|---|
Common features in the Canon M5 and Olympus E-M10
| M5 | E-M10 | |||
|---|---|---|---|---|
| Manual focus |  | Very exact focus | ||
| Display type | Tilting |  | Tilting | Tilting display |
| Touch display |  | Easily navigate |

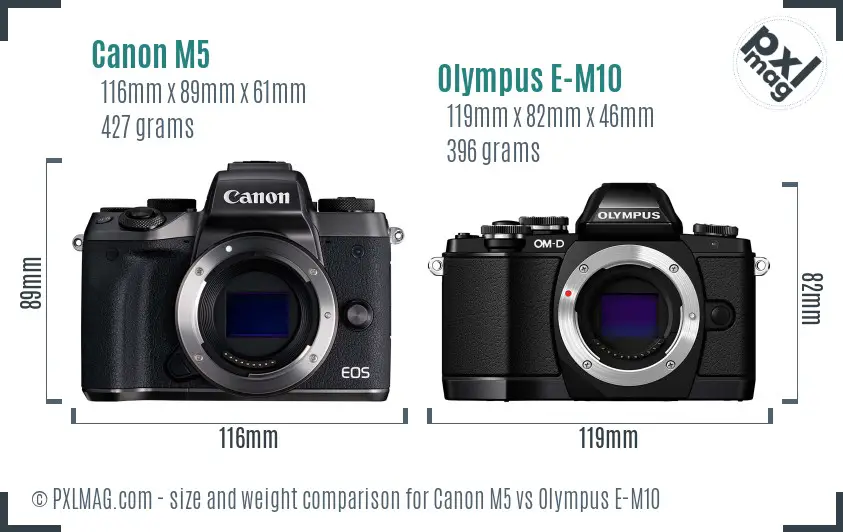

Canon M5 vs Olympus E-M10 Physical Comparison
When you are intending to carry your camera often, you will have to think about its weight and proportions. The Canon M5 features physical dimensions of 116mm x 89mm x 61mm (4.6" x 3.5" x 2.4") and a weight of 427 grams (0.94 lbs) and the Olympus E-M10 has measurements of 119mm x 82mm x 46mm (4.7" x 3.2" x 1.8") and a weight of 396 grams (0.87 lbs).
Analyze the Canon M5 vs Olympus E-M10 in our newest Camera & Lens Size Comparison Tool.
Always remember, the weight of an ILC will vary dependant on the lens you have at that moment. The following is the front view dimension comparison of the M5 versus the E-M10.
Factoring in size and weight, the portability rating of the M5 and E-M10 is 77 and 82 respectively.

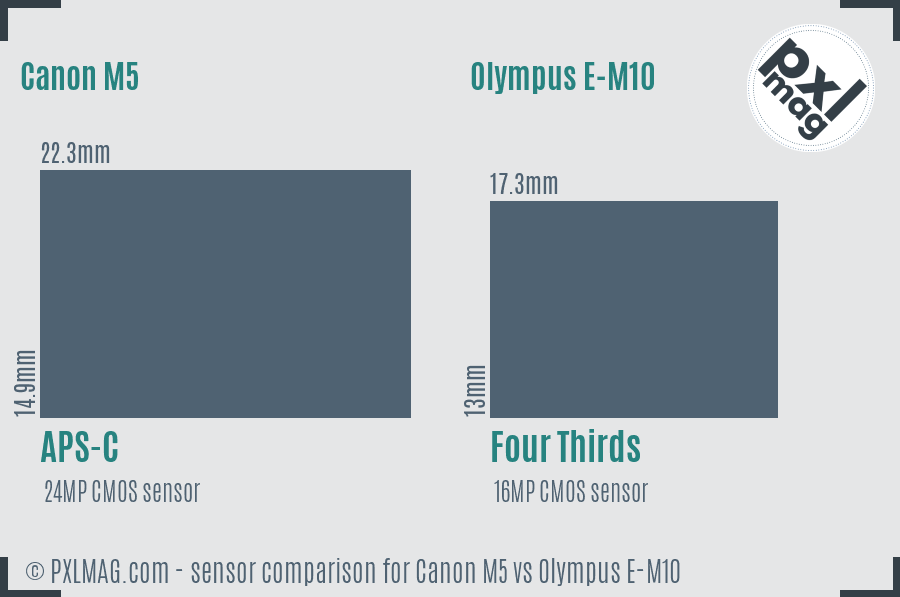

Canon M5 vs Olympus E-M10 Sensor Comparison
Oftentimes, it is hard to visualise the difference in sensor sizing only by seeing specifications. The visual here should provide you a far better sense of the sensor sizes in the M5 and E-M10.
Plainly, both of those cameras enjoy different resolutions and different sensor sizing. The M5 having a larger sensor will make shooting shallow DOF easier and the Canon M5 will provide more detail with its extra 8MP. Greater resolution will enable you to crop pics far more aggressively. The younger M5 will have a benefit in sensor tech.

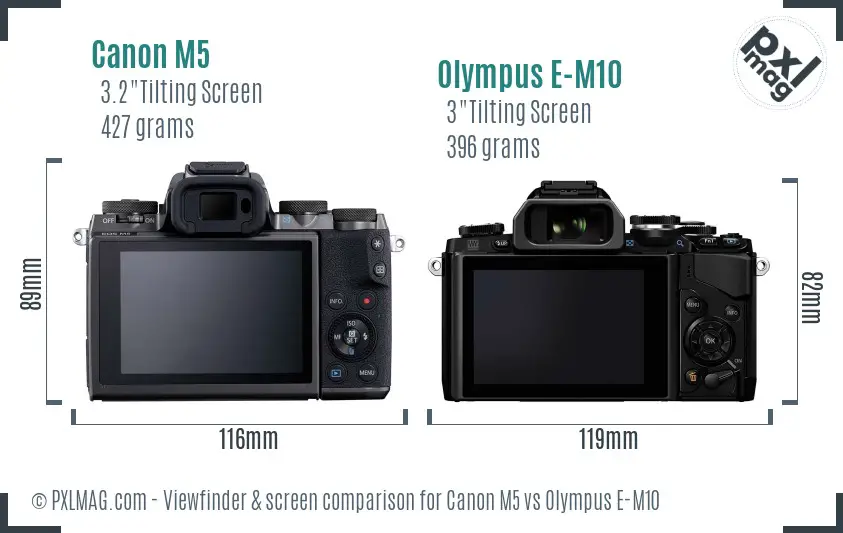

Canon M5 vs Olympus E-M10 Screen and ViewFinder
Japan-exclusive Leica Leitz Phone 3 features big sensor and new modes Photography Type Scores
Portrait Comparison
Samsung Releases Faster Versions of EVO MicroSD CardsStreet Comparison
President Biden pushes bill mandating TikTok sale or banSports Comparison
Pentax 17 Pre-Orders Outperform Expectations by a LandslideTravel Comparison
Sora from OpenAI releases its first ever music videoLandscape Comparison
Apple Innovates by Creating Next-Level Optical Stabilization for iPhoneVlogging Comparison
Photography Glossary
Canon M5 vs Olympus E-M10 Specifications
| Canon EOS M5 | Olympus OM-D E-M10 | |
|---|---|---|
| General Information | ||
| Brand Name | Canon | Olympus |
| Model | Canon EOS M5 | Olympus OM-D E-M10 |
| Class | Advanced Mirrorless | Entry-Level Mirrorless |
| Released | 2016-09-15 | 2014-03-18 |
| Physical type | SLR-style mirrorless | SLR-style mirrorless |
| Sensor Information | ||
| Chip | Digic 7 | TruePic VII |
| Sensor type | CMOS | CMOS |
| Sensor size | APS-C | Four Thirds |
| Sensor measurements | 22.3 x 14.9mm | 17.3 x 13mm |
| Sensor surface area | 332.3mm² | 224.9mm² |
| Sensor resolution | 24 megapixels | 16 megapixels |
| Anti aliasing filter | ||
| Aspect ratio | 1:1, 4:3, 3:2 and 16:9 | 1:1, 4:3, 3:2 and 16:9 |
| Peak resolution | 6000 x 4000 | 4608 x 3456 |
| Highest native ISO | 25600 | 25600 |
| Minimum native ISO | 100 | 200 |
| RAW photos | ||
| Autofocusing | ||
| Focus manually | ||
| AF touch | ||
| AF continuous | ||
| AF single | ||
| AF tracking | ||
| AF selectice | ||
| AF center weighted | ||
| Multi area AF | ||
| Live view AF | ||
| Face detect focusing | ||
| Contract detect focusing | ||
| Phase detect focusing | ||
| Number of focus points | 49 | 81 |
| Lens | ||
| Lens mount | Canon EF-M | Micro Four Thirds |
| Amount of lenses | 23 | 107 |
| Focal length multiplier | 1.6 | 2.1 |
| Screen | ||
| Type of display | Tilting | Tilting |
| Display sizing | 3.2 inches | 3 inches |
| Resolution of display | 1,620 thousand dots | 1,037 thousand dots |
| Selfie friendly | ||
| Liveview | ||
| Touch operation | ||
| Display tech | - | TFT LCD |
| Viewfinder Information | ||
| Viewfinder | Electronic | Electronic |
| Viewfinder resolution | 2,360 thousand dots | 1,440 thousand dots |
| Viewfinder coverage | 100% | 100% |
| Viewfinder magnification | - | 0.58x |
| Features | ||
| Min shutter speed | 30 seconds | 60 seconds |
| Max shutter speed | 1/4000 seconds | 1/4000 seconds |
| Continuous shutter rate | 9.0 frames/s | 8.0 frames/s |
| Shutter priority | ||
| Aperture priority | ||
| Manual mode | ||
| Exposure compensation | Yes | Yes |
| Custom WB | ||
| Image stabilization | ||
| Integrated flash | ||
| Flash range | 5.00 m (at ISO 100) | 5.80 m (ISO100) |
| Flash options | - | Flash Auto, Redeye, Fill-in, Flash Off, Red-eye Slow sync.(1st curtain), Slow sync.(1st curtain), Slow sync.(2nd curtain), Manual（1/1（FULL）～1/64） |
| External flash | ||
| AE bracketing | ||
| WB bracketing | ||
| Max flash synchronize | 1/200 seconds | 1/250 seconds |
| Exposure | ||
| Multisegment exposure | ||
| Average exposure | ||
| Spot exposure | ||
| Partial exposure | ||
| AF area exposure | ||
| Center weighted exposure | ||
| Video features | ||
| Supported video resolutions | 1920 x 1080 @ 60p / 35 Mbps, MP4, H.264, AAC | 1920 x 1080 (30p), 1280 x 720 (30p), 640 x 480 (30 fps) |
| Highest video resolution | 1920x1080 | 1920x1080 |
| Video data format | MP4, H.264, AAC | H.264, Motion JPEG |
| Microphone port | ||
| Headphone port | ||
| Connectivity | ||
| Wireless | Built-In | Built-In |
| Bluetooth | ||
| NFC | ||
| HDMI | ||
| USB | USB 2.0 (480 Mbit/sec) | USB 2.0 (480 Mbit/sec) |
| GPS | None | Optional |
| Physical | ||
| Environmental sealing | ||
| Water proof | ||
| Dust proof | ||
| Shock proof | ||
| Crush proof | ||
| Freeze proof | ||
| Weight | 427g (0.94 lb) | 396g (0.87 lb) |
| Dimensions | 116 x 89 x 61mm (4.6" x 3.5" x 2.4") | 119 x 82 x 46mm (4.7" x 3.2" x 1.8") |
| DXO scores | ||
| DXO Overall score | 77 | 72 |
| DXO Color Depth score | 23.4 | 22.8 |
| DXO Dynamic range score | 12.4 | 12.3 |
| DXO Low light score | 1262 | 884 |
| Other | ||
| Battery life | 295 photos | 320 photos |
| Form of battery | Battery Pack | Battery Pack |
| Battery model | - | BLS-5 |
| Self timer | Yes (2 or 10 secs, custom, remote) | Yes (12 sec., 2 sec.,custom (Waiting time 1-30sec.,Shooting interval 0.5/1/2/3sec.,Number of shots 1-10)) |
| Time lapse recording | ||
| Storage type | SD/SDHC/SDXC card | SD/SDHC/SDXC |
| Card slots | 1 | 1 |
| Price at release | $680 | $600 |
