Pentax K-3 vs Sony TX20
59 Imaging
65 Features
85 Overall
73


96 Imaging
39 Features
50 Overall
43
Pentax K-3 vs Sony TX20 Key Specs
(Full Review)
- 24MP - APS-C Sensor
- 3.2" Fixed Screen
- ISO 100 - 51200
- Sensor based Image Stabilization
- No Anti-Alias Filter
- 1/8000s Max Shutter
- 1920 x 1080 video
- Pentax KAF2 Mount
- 800g - 131 x 100 x 77mm
- Launched April 2014
- Refreshed by Pentax K-3 II
(Full Review)
- 16MP - 1/2.3" Sensor
- 3" Fixed Display
- ISO 125 - 3200
- Optical Image Stabilization
- 1920 x 1080 video
- 25-100mm (F3.5-4.6) lens
- 133g - 96 x 56 x 18mm
- Introduced February 2012

Pentax K-3 vs Sony TX20 Overview
Below, we are evaluating the Pentax K-3 versus Sony TX20, one is a Advanced DSLR and the other is a Ultracompact by competitors Pentax and Sony. There is a crucial difference between the sensor resolutions of the K-3 (24MP) and TX20 (16MP) and the K-3 (APS-C) and TX20 (1/2.3") use different sensor measurements.

The K-3 was released 2 years after the TX20 which is quite a serious gap as far as tech is concerned. The two cameras come with different body type with the Pentax K-3 being a Mid-size SLR camera and the Sony TX20 being a Ultracompact camera.
Before we go in to a complete comparison, below is a short synopsis of how the K-3 scores versus the TX20 when it comes to portability, imaging, features and an overall mark.

Pentax K-3 vs Sony TX20 Gallery
This is a sample of the gallery pics for Pentax K-3 and Sony Cyber-shot DSC-TX20. The complete galleries are available at Pentax K-3 Gallery and Sony TX20 Gallery.
Reasons to pick Pentax K-3 over the Sony TX20
K-3 | TX20 | |||
---|---|---|---|---|
Introduced | April 2014 | ![]() | February 2012 | Newer by 26 months |
Display dimension | 3.2" | ![]() | 3" | Larger display (+0.2") |
Display resolution | 1037k | ![]() | 922k | Clearer display (+115k dot) |
Reasons to pick Sony TX20 over the Pentax K-3
TX20 | K-3 | |||
---|---|---|---|---|
Touch friendly display | ![]() | Easily navigate |
Common features in the Pentax K-3 and Sony TX20
K-3 | TX20 | |||
---|---|---|---|---|
Manual focus | ![]() | Very exact focusing | ||
Display type | Fixed | ![]() | Fixed | Fixed display |
Selfie screen | ![]() | Lacking selfie screen |

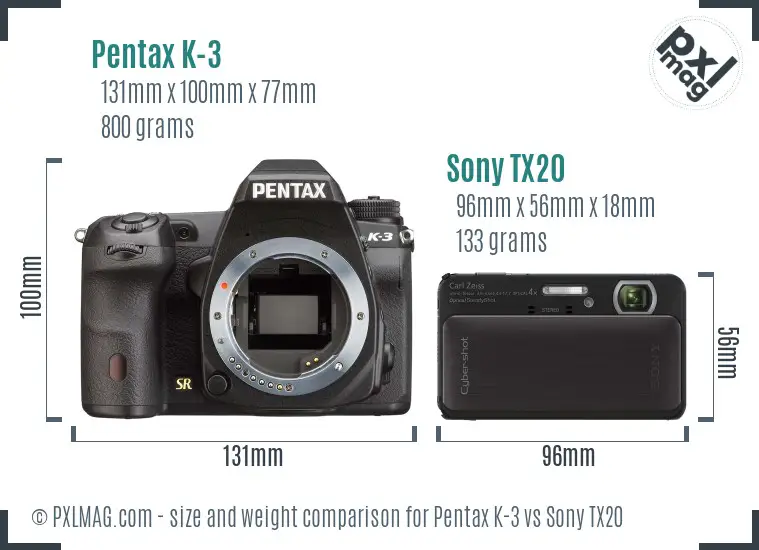

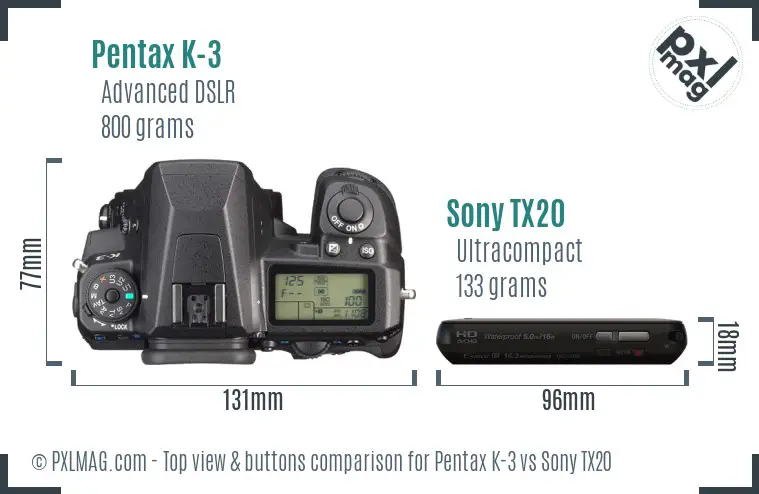

Pentax K-3 vs Sony TX20 Physical Comparison
For anyone who is intending to travel with your camera regularly, you are going to need to consider its weight and measurements. The Pentax K-3 comes with external measurements of 131mm x 100mm x 77mm (5.2" x 3.9" x 3.0") along with a weight of 800 grams (1.76 lbs) whilst the Sony TX20 has proportions of 96mm x 56mm x 18mm (3.8" x 2.2" x 0.7") with a weight of 133 grams (0.29 lbs).
Contrast the Pentax K-3 versus Sony TX20 in the new Camera with Lens Size Comparison Tool.
Don't forget, the weight of an Interchangeable Lens Camera will differ depending on the lens you have at the time. Following is the front view dimension comparison of the K-3 and the TX20.

Taking into consideration size and weight, the portability grade of the K-3 and TX20 is 59 and 96 respectively.

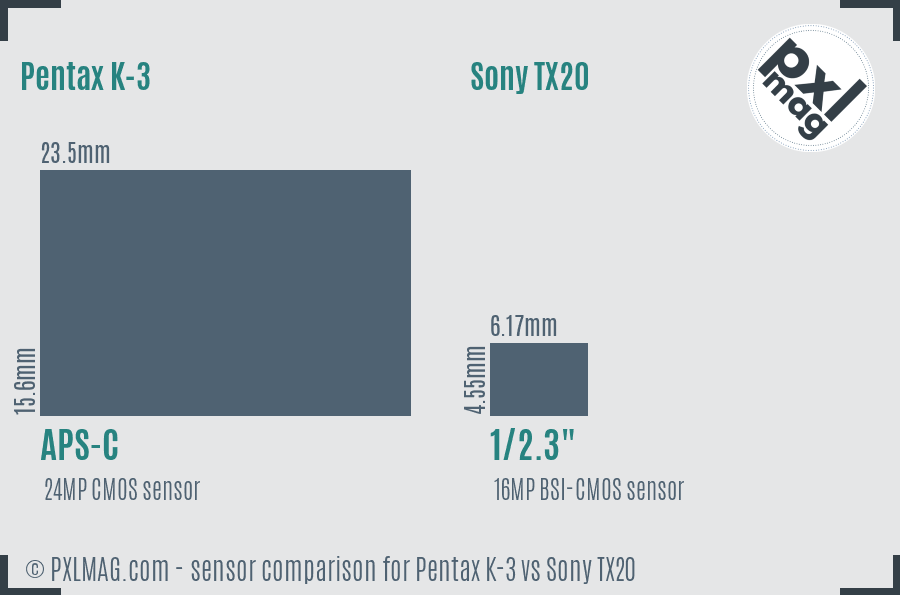

Pentax K-3 vs Sony TX20 Sensor Comparison
Often, it is very difficult to picture the contrast between sensor dimensions merely by reading through a spec sheet. The image here might offer you a far better sense of the sensor measurements in the K-3 and TX20.
As you can see, each of these cameras have got different megapixels and different sensor dimensions. The K-3 due to its larger sensor is going to make getting shallower depth of field less difficult and the Pentax K-3 will give more detail as a result of its extra 8 Megapixels. Greater resolution can also let you crop photos much more aggressively. The fresher K-3 should have an advantage with regard to sensor technology.

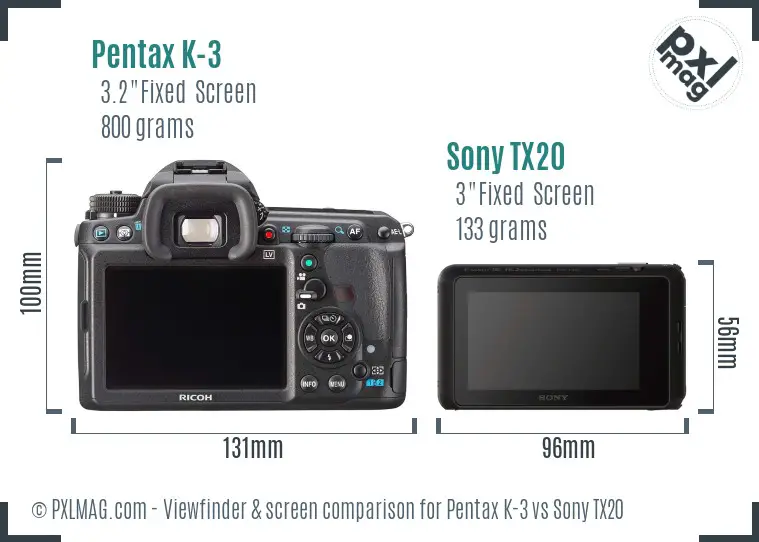

Pentax K-3 vs Sony TX20 Screen and ViewFinder


Photography Type Scores
Portrait Comparison

Street Comparison

Sports Comparison

Travel Comparison

Landscape Comparison

Vlogging Comparison

Pentax K-3 vs Sony TX20 Specifications
Pentax K-3 | Sony Cyber-shot DSC-TX20 | |
---|---|---|
General Information | ||
Manufacturer | Pentax | Sony |
Model | Pentax K-3 | Sony Cyber-shot DSC-TX20 |
Category | Advanced DSLR | Ultracompact |
Launched | 2014-04-10 | 2012-02-28 |
Body design | Mid-size SLR | Ultracompact |
Sensor Information | ||
Powered by | Prime III | BIONZ |
Sensor type | CMOS | BSI-CMOS |
Sensor size | APS-C | 1/2.3" |
Sensor measurements | 23.5 x 15.6mm | 6.17 x 4.55mm |
Sensor area | 366.6mm² | 28.1mm² |
Sensor resolution | 24MP | 16MP |
Anti aliasing filter | ||
Aspect ratio | 3:2 | 4:3 and 16:9 |
Highest Possible resolution | 6016 x 4000 | 4608 x 3456 |
Maximum native ISO | 51200 | 3200 |
Minimum native ISO | 100 | 125 |
RAW support | ||
Autofocusing | ||
Manual focus | ||
Touch to focus | ||
Continuous autofocus | ||
Single autofocus | ||
Tracking autofocus | ||
Selective autofocus | ||
Autofocus center weighted | ||
Autofocus multi area | ||
Autofocus live view | ||
Face detection focus | ||
Contract detection focus | ||
Phase detection focus | ||
Number of focus points | 27 | - |
Cross focus points | 25 | - |
Lens | ||
Lens mount | Pentax KAF2 | fixed lens |
Lens focal range | - | 25-100mm (4.0x) |
Maximal aperture | - | f/3.5-4.6 |
Macro focus distance | - | 1cm |
Number of lenses | 151 | - |
Crop factor | 1.5 | 5.8 |
Screen | ||
Screen type | Fixed Type | Fixed Type |
Screen sizing | 3.2 inch | 3 inch |
Resolution of screen | 1,037 thousand dot | 922 thousand dot |
Selfie friendly | ||
Liveview | ||
Touch capability | ||
Screen tech | TFT LCD monitor | XtraFine TruBlack TFT LCD |
Viewfinder Information | ||
Viewfinder type | Optical (pentaprism) | None |
Viewfinder coverage | 100% | - |
Viewfinder magnification | 0.64x | - |
Features | ||
Minimum shutter speed | 30 secs | 4 secs |
Fastest shutter speed | 1/8000 secs | 1/1600 secs |
Continuous shutter speed | 8.0fps | 10.0fps |
Shutter priority | ||
Aperture priority | ||
Manual exposure | ||
Exposure compensation | Yes | - |
Custom white balance | ||
Image stabilization | ||
Integrated flash | ||
Flash range | 13.00 m (at ISO 100) | 3.70 m |
Flash settings | Auto, on, off, red-eye, slow sync, slow sync + red-eye, trailing curtain sync, high speed, wireless, manual | Auto, On, Off, Slow Sync |
External flash | ||
AEB | ||
White balance bracketing | ||
Fastest flash sync | 1/180 secs | - |
Exposure | ||
Multisegment metering | ||
Average metering | ||
Spot metering | ||
Partial metering | ||
AF area metering | ||
Center weighted metering | ||
Video features | ||
Video resolutions | 1920 x 1080 (60i, 50i, 30p, 25p, 24p), 1280 x 720 (60p, 50p, 30p, 25p, 24p) | 1920 x 1080 (60 fps), 1440 x 1080 (60, 30 fps), 1280 x 720 (30 fps), 640 x 480 (30 fps) |
Maximum video resolution | 1920x1080 | 1920x1080 |
Video file format | MPEG-4, H.264 | MPEG-4, AVCHD |
Microphone input | ||
Headphone input | ||
Connectivity | ||
Wireless | None | Eye-Fi Connected |
Bluetooth | ||
NFC | ||
HDMI | ||
USB | USB 3.0 (5 GBit/sec) | USB 2.0 (480 Mbit/sec) |
GPS | Optional | None |
Physical | ||
Environment seal | ||
Water proof | ||
Dust proof | ||
Shock proof | ||
Crush proof | ||
Freeze proof | ||
Weight | 800g (1.76 lb) | 133g (0.29 lb) |
Dimensions | 131 x 100 x 77mm (5.2" x 3.9" x 3.0") | 96 x 56 x 18mm (3.8" x 2.2" x 0.7") |
DXO scores | ||
DXO Overall score | 80 | not tested |
DXO Color Depth score | 23.7 | not tested |
DXO Dynamic range score | 13.4 | not tested |
DXO Low light score | 1216 | not tested |
Other | ||
Battery life | 560 pictures | 250 pictures |
Battery format | Battery Pack | Battery Pack |
Battery model | D-LI90 | NP-BN |
Self timer | Yes ( 2 or 12 seconds) | Yes (2 or 10 sec, Portrait 1/2) |
Time lapse shooting | ||
Type of storage | Dual SD/SDHC/SDXC | SD/SDHC/SDXC/Memory Stick Duo/Memory Stick Pro Duo, Memory Stick Pro-HG Duo |
Storage slots | Dual | One |
Launch price | $639 | $330 |
